A00COUP04
Model: Huawei A00COUP04 27130004 Antenna Feeder Coupler
Details: Antenna Feeder Coupler,CDMA/GSM/WCDMA/WLAN,Cavity stripline,800~2500MHz,7dB,N/Female
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
A00COUP04 Overview

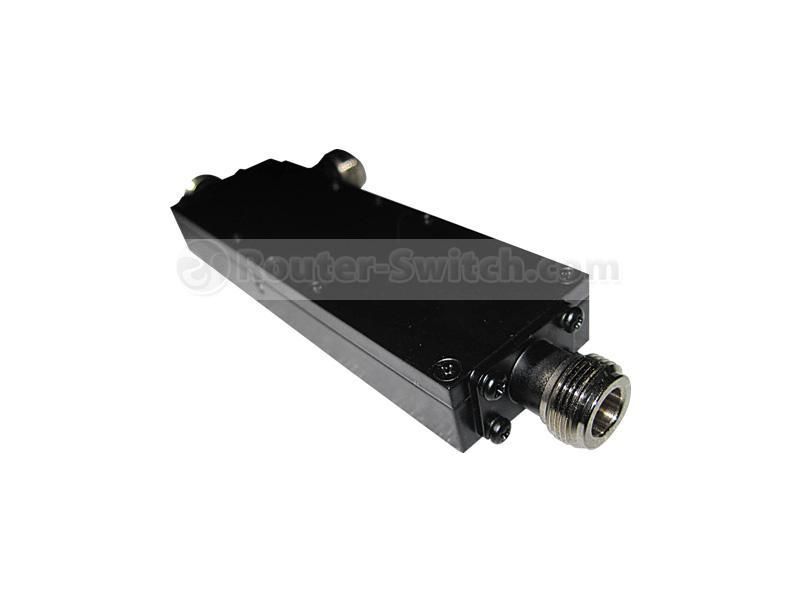

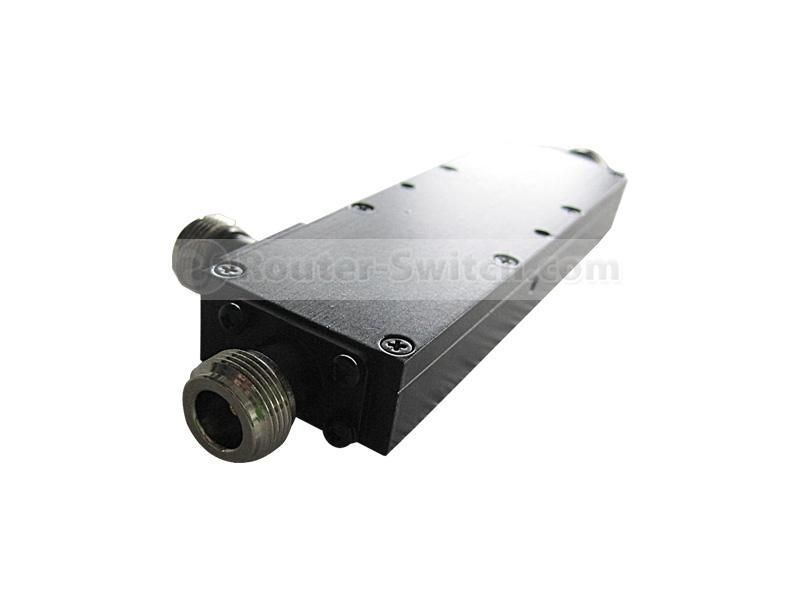

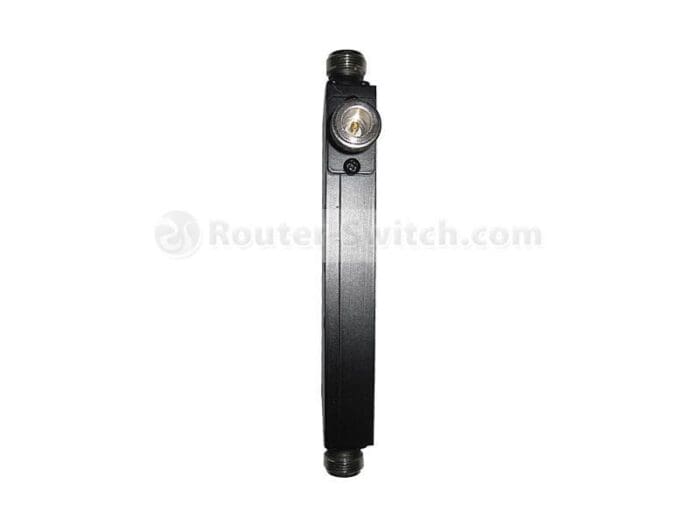

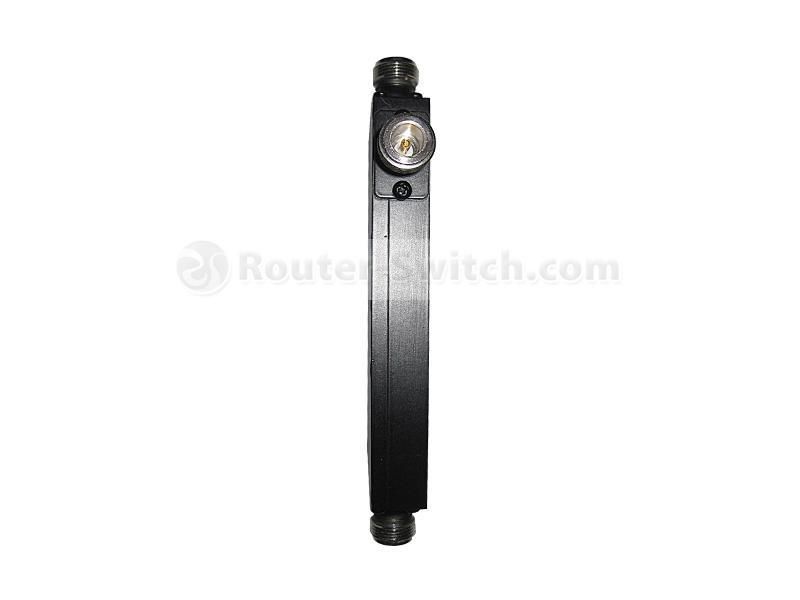

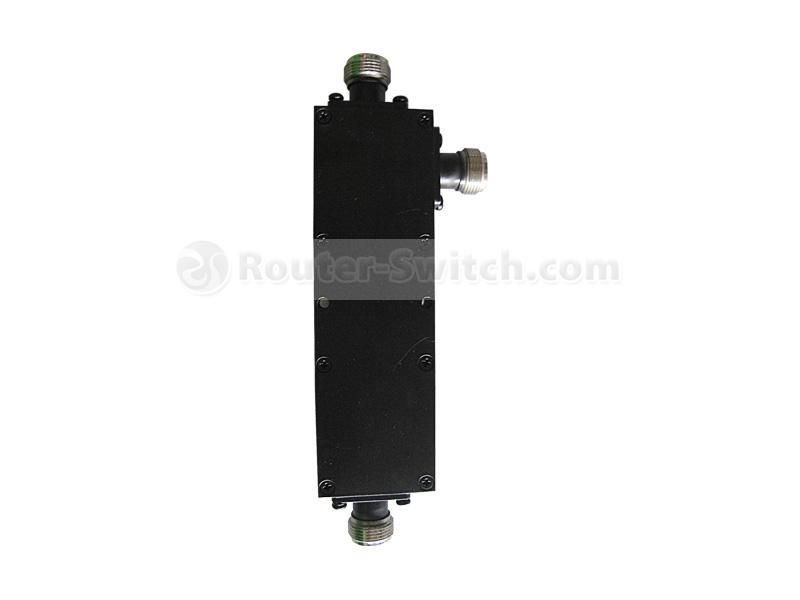

Quick Specs Figure 1 shows the appearance of A00COUP04.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | A00COUP04 |
| Type | Antenna Feeder Coupler |
| Frequency Range | 800~2500 MHz |
| Supported Bands | CDMA, GSM, WCDMA, WLAN |
| Coupling Value | 7 dB |
| Connector Type | N/Female |
| Design | Cavity Stripline |
| Impedance | 50 Ohms |
| VSWR | < 1.2:1 |
| Operating Temperature | -40°C to +85°C |
| Insertion Loss | < 0.2 dB |
| Return Loss | > 20 dB |
| Power Handling | 50 Watts |
| Surge Protection | Yes |
| RoHS Compliance | Yes |
| Dimensions | 120 x 80 x 30 mm |
| Housing Material | Aluminum |
| Finish | Powder Coated |
| Mounting | Panel Mount |
| Compliance | 3GPP |
