Model: Huawei A00COUP05 27130013 Antenna Feeder Coupler
Details: Antenna Feeder Coupler,CDMA/GSM/WCDMA/WLAN,Cavity stripline structure,800~2500MHz,20+/-1dB,N/female
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: A00COUP05 Categories: , , ,
Description

A00COUP05 Overview

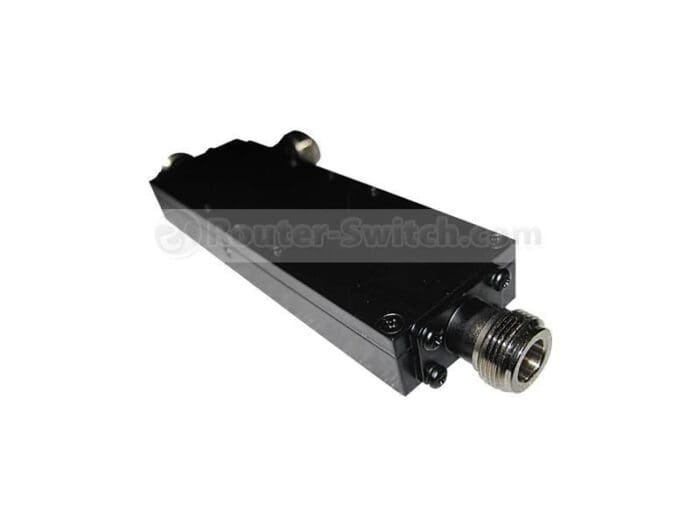

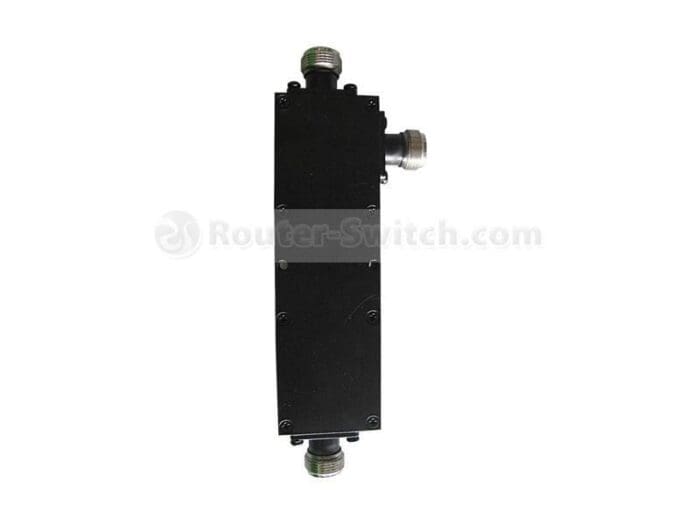

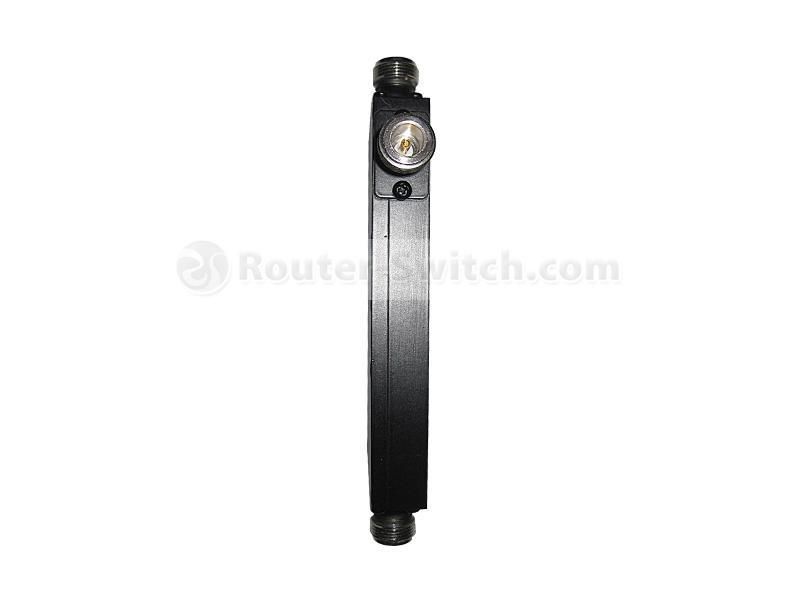

Quick Specs Figure 1 shows the appearance of A00COUP05.

Table 1 shows the Quick Specs.

Brand Huawei
Model A00COUP05
Product Type Antenna Feeder Coupler
Supported Technologies CDMA, GSM, WCDMA, WLAN
Structure Type Cavity stripline structure
Frequency Range 800~2500 MHz
Coupling 20+/-1 dB
Input/Output Connector N/female
Impedance 50 Ohms
VSWR ° 1.2:1
Insertion Loss ° 0.5 dB
Operating Temperature -40°C to +85°C
Power Handling 50 W
Isolation ° 25 dB
Humidity 95% at 55°C
Dimensions (L x W x H) 130 x 40 x 25 mm
Material Aluminum alloy
Color Silver
Shielding Effectiveness > 100 dB
Compliance RoHS
Application Telecommunication systems
