A903-RSP1A-55
Model: A903-RSP1A-55 Cisco ASR 903 Route Switch Processor
Details: Cisco ASR 903 Route Switch Processor A903-RSP1A-55 ASR 903 Route Switch Processor 1, Base Scale
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
A903-RSP1A-55 Overview

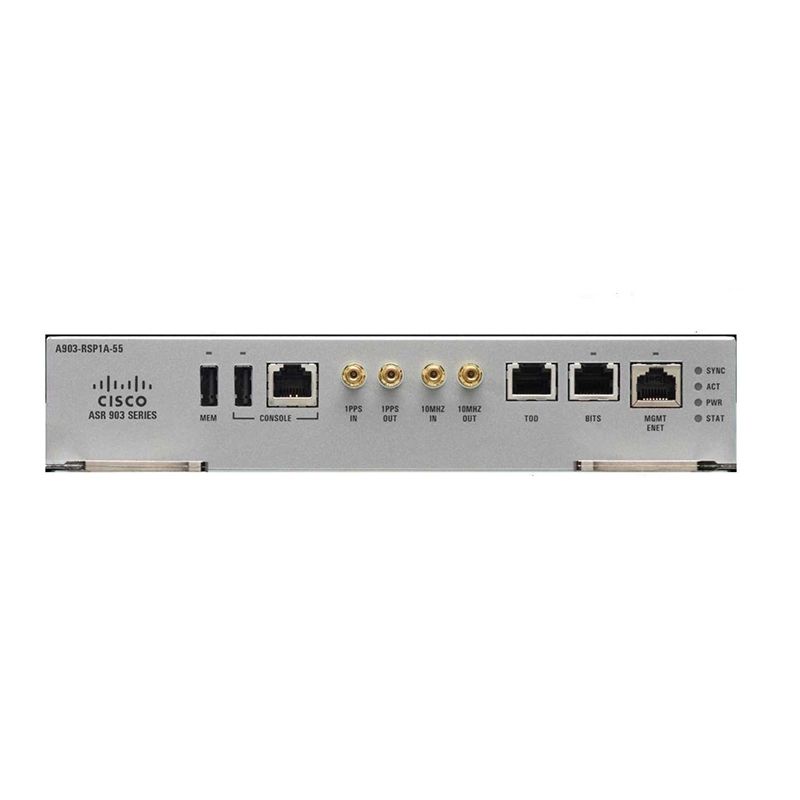

Quick Specs Figure 1 shows the appearance of A903-RSP1A-55.
Table 1 shows the Quick Specs.
| Power consumption of chassis with 2 power supplies, 1 fan tray, and 1 RSP | A903-RSP1A-55: 195W |
| RSP memory (DRAM) | A903-RSP1A-55: 2 GB |
| Flash memory (storage) | 2 GB |
| Service scale | A903-RSP1A-55: Base |
| Ethernet interface module compatibility | A900-IMA1XA900-IMA8SA900-IMA8T |
| TDM and ATM interface module compatibility | A900-IMA16DA900-IMA4OSA900-IMASER14A/S |
| Maximum transmission unit (MTU) | Configurable MTU of up to 9216 bytes, for bridging on Gigabit Ethernet, 10 and 100 Gigabit Ethernet |
| Maximum interface throughput | 55 Gbps |
| IP version 4 performance | 65 Mpps |
| IP version 6 performance | 65 Mpps |
| Management ports | Copper 10/100/1000Base-T LAN management port – RJ45 connector port Console/Aux RS232 serial ports – RJ45 connector port Console – USB 2.0 type A receptacle connector port |
| Timing ports | BITS simultaneous input and output (J1/T1/E1) – RJ48 connector port1 pps input – mini-coax connector port1 pps output – mini-coax connector port 2.048/10 MHz input – mini-coax connector port 2.048/10 MHz output – mini-coax connector port |
| External USB flash memory | Mass storage – USB 2.0 type A receptacle connector port |
| Shipment package size in inches (L x W x H) | 14.38 x 14.38 x 6.25 |
| Shipment package weight | 6.2 lbs. |
| MTBF at 104ºF (40ºC) operating temperature | 300,000 hours |
| MAC addresses | 16,000 |
| Bridge domains | 4,000 |
| Ethernet flow points | 3,998 |
| L3 interfaces | 256 |
| IPv4 routes | 20,000 |
| IPv6 routes | 6,000 |
| Multicast routes | 1,000 |
| MPLS VPN | 128 |
| MPLS labels | 15,994 |
| EoMPLS tunnels per system | 2,000 |
| VPLS instances | 2,000 |
| Queues | 4,000 |
| Classifications | 5,000 |
| Ingress policers | 2,000 |
| Class maps | 1,000 |
| Queue counters (packet and byte) | 4,000 |
| Policer counters (packet and byte) | 6,000 |
| IPv4 ACL entries | 1,500 |
| BFD sessions | 511 |
| IEEE 802.1ag (CFM) at 3.3ms interval | 256 |
