A9K-24X10GE-SE
Model: A9K-24X10GE-SE Cisco ASR 9000 Ethernet Linecard
Details: Cisco ASR 9000 Series Router Ethernet Linecard A9K-24X10GE-SE ASR 9000 24-port 10GE, Service Edge Optimized LC (spare)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
A9K-24X10GE-SE Overview

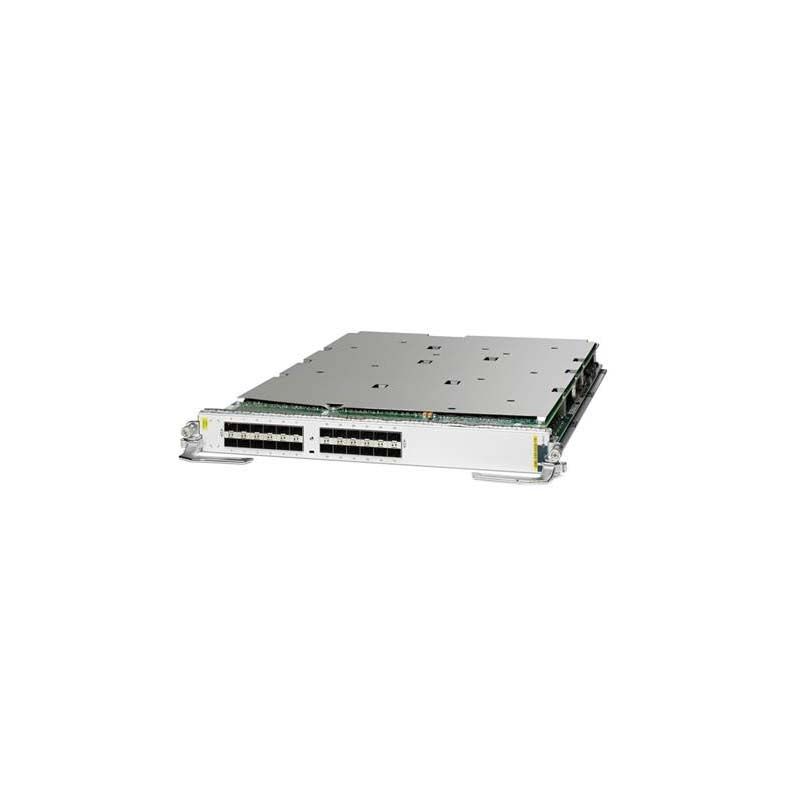

Quick Specs Figure 1 shows the appearance of A9K-24X10GE-SE.
Table 1 shows the Quick Specs.
| Part Number | A9K-24X10GE-SE |
| Product Description | Cisco ASR 9000 24-Port 10GE Service Edge Optimized Line Card, requires SFP+ optics |
| Chassis compatibility | Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis |
| Port density | 24 ports of 10 Gigabit Ethernet per line card |
| Ethernet | ● 10-Gbps IEEE 802.3 compliant● 10 Gigabit Ethernet PHY monitoring● IEEE 802.x flow control● Full-duplex operation● Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets |
| Performance | ● 10-Gbps line-rate throughput per port |
| Options | Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card |
| Reliability and availability | Line card online insertion and removal (OIR) support without system impact |
| Physical dimensions (H x W x D); weight | 14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 6.35 kg) |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9000 Series Routers are designed to meet:● SR-3580: NEBS Criteria Levels (Level 3)● GR-1089-CORE: NEBS EMC and Safety● GR-63-CORE: NEBS Physical Protection |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 23 to 131ºF (–5 to 55ºC)Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period). |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) |
| Storage (relative humidity) | 5 to 95%Note: Not to exceed 0.024 kg of water per kg of dry air |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| ETSI standards | Cisco ASR 9000 Series Routers are designed to meet:● EN300 386: Telecommunications Network Equipment (EMC)● ETSI 300 019 Storage Class 1.1● ETSI 300 019 Transportation Class 2.3● ETSI 300 019 Stationary Use Class 3.1● EN55022: Information Technology Equipment (Emissions)● EN55024: Information Technology Equipment (Immunity)● EN50082-1/EN-61000-6-1: Generic Immunity Standard |
| EMC standards | Cisco ASR 9000 Series Routers are designed to meet:● FCC Class A● ICES 003 Class A● AS/NZS 3548 Class A● CISPR 22 (EN55022) Class A● VCCI Class A● BSMI Class A● IEC/EN 61000-3-2: Power Line Harmonics● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
| Immunity | Cisco ASR 9000 Series Routers are designed to meet:● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)● IEC/EN-61000-4-3: Radiated Immunity (10V/m)● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)● IEC/EN-61000-4-5: Signal Ports (1kV)● IEC/EN-61000-4-5: Surge DC Port (1kV)● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations |
| Safety | Cisco ASR 9000 Series Routers are designed to meet:● UL/CSA/IEC/EN 60950-1● IEC/EN 60825 Laser Safety● ACA TS001● AS/NZS 60950● FDA – Code of Federal Regulations Laser Safety |
