A9K-ISM-100
Model: A9K-ISM-100 Cisco ASR 9000 Series Service Module
Details: Cisco ASR 9000 Module A9K-ISM-100 ASR9000 AVSM ISM 40G
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
A9K-ISM-100 Overview

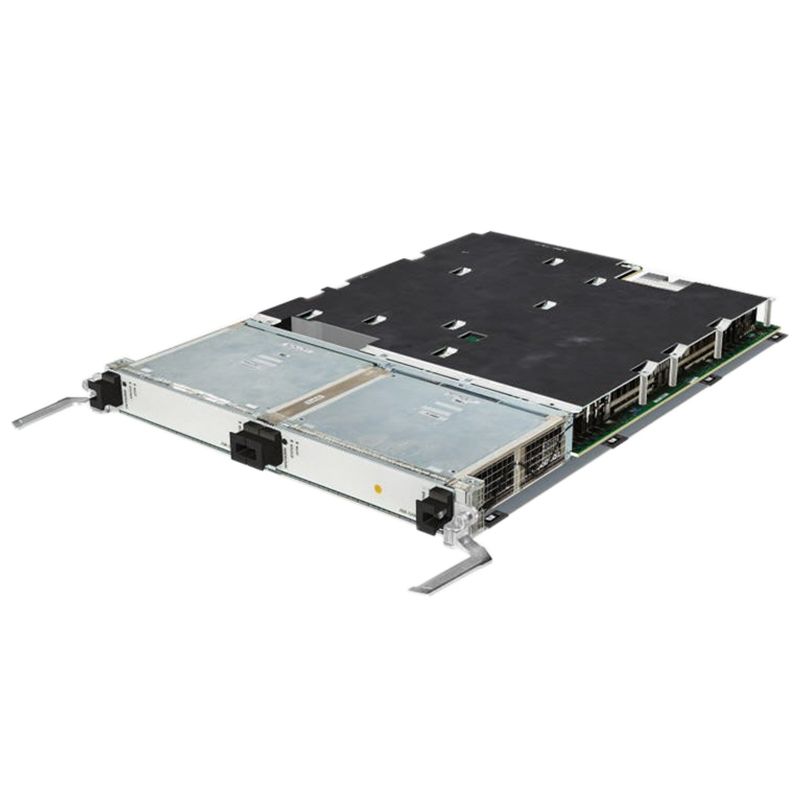

Quick Specs Figure 1 shows the appearance of A9K-ISM-100.
Table 1 shows the Quick Specs.
| Type | Cisco ASR 9000 Module AVSM ISM 40G |
| Redundancy | · No single point of failure· Fabric redundancy· Power supply redundancy· ISM redundancy (through CDSM) |
| Physical specifications | Cisco ASR 9000 Series ISM (A9K-ISM-100) occupies one slot; can be inserted in any slot within the chassis:· Height: 1.65 in. (4.19 cm.)· Width: 15.86 in. (40.28 cm.)· Depth: 23.91 in. (60.73 cm.)· Weight: 18.35 lb |
| Power input | · Worldwide ranging AC: 200–240V; 50–60 Hz; 16A nominal· Worldwide ranging DC: –48V to –60V; –54V; 50A nominal |
| Environmental conditions | · Operating temperature: 32 to 104°F (0 to 40°C)· Storage temperature: –40 to 167°F (–40 to 75°C)· Relative humidity: 10 to 90%, noncondensing· Regulatory compliance |
| Power consumption | · Typical: 330W· Maximum: 450W |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature(short-term) | 23 to 131ºF (–5 to 55ºC)Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that one-year period). |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity(short-term) | 5 to 90%Note: Not to exceed 0.024 kg water or dry air |
| Storage temperature | –40 to 158ºF (–40 to 70ºC) |
| Storage (relative humidity) | 5 to 95%Note: Not to exceed 0.024 kg water or dry air. |
| Operating altitude | –60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| NEBS | Cisco ASR 9000 Series Integrated Service Module is designed to meet:· SR-3580: NEBS Criteria Levels (Level 3)· GR-1089-CORE: NEBS EMC and Safety· GR-63-CORE: NEBS Physical Protection |
| ETSI standards | Cisco ASR 9000 series Integrated Service Module is designed to meet:· EN300 386: Telecommunications Network Equipment (EMC)· ETSI 300 019 Storage Class 1.1· ETSI 300 019 Transportation Class 2.3· ETSI 300 019 Stationary Use Class 3.1· EN55022: Information Technology Equipment (Emissions)· EN55024: Information Technology Equipment (Immunity)· EN50082-1/EN-61000-6-1: Generic Immunity Standard |
| EMC standards | Cisco ASR 9000 series Integrated Service Module is designed to meet:· FCC Class A· ICES 003 Class A· AS/NZS 3548 Class A· CISPR 22 (EN55022) Class A· VCCI Class A· BSMI Class A· IEC/EN 61000-3-2: Power Line Harmonics· IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
| Immunity | Cisco ASR 9000 series Integrated Service Module is designed to meet:· IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)· IEC/EN-61000-4-3: Radiated Immunity (10V/m)· IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)· IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)· IEC/EN-61000-4-5: Signal Ports (1kV)· IEC/EN-61000-4-5: Surge DC Port (1kV)· IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)· IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)· IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations |
| Safety | Cisco ASR 9000 series Integrated Service Module is designed to meet:· UL/CSA/IEC/EN 60950-1· IEC/EN 60825 Laser Safety· ACA TS001· AS/NZS 60950· FDA: Code of Federal Regulations Laser Safety |
