Name: A9K-MOD80-SE
SKU: A9K-MOD80-SE
Availability: InStock

A9K-MOD80-SE

Model: A9K-MOD80-SE Cisco ASR 9000 Ethernet Linecard
Details: Cisco ASR 9000 Series Router Ethernet Linecard A9K-MOD80-SE 80G Modular Linecard, Service Edge Optimized (spare)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

A9K-MOD80-SE Overview

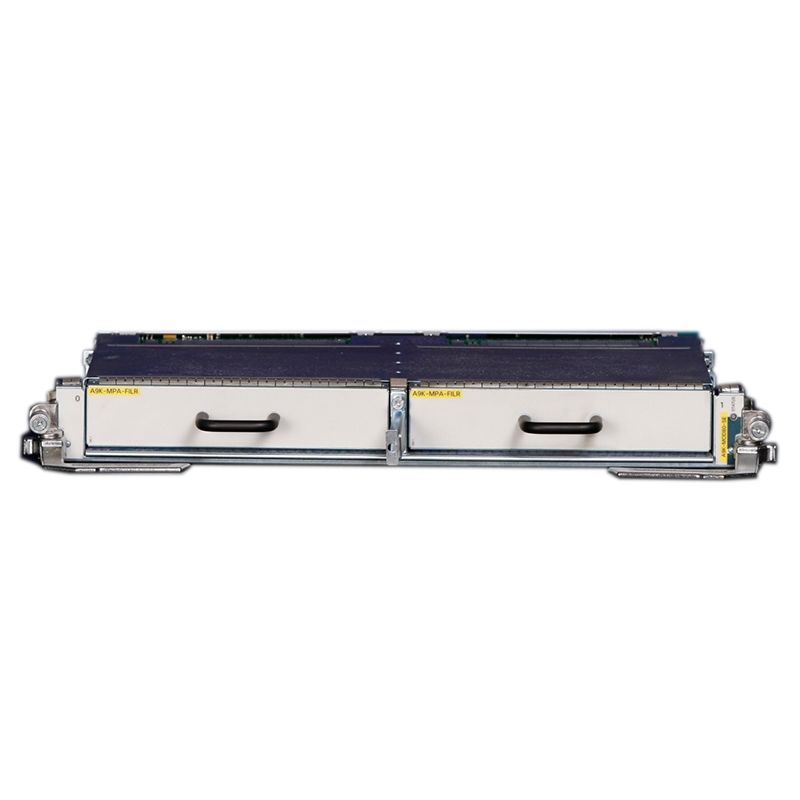

Quick Specs Figure 1 shows the appearance of A9K-MOD80-SE.

Table 1 shows the Quick Specs.

Type	ASR 9000 Mod80 Modular Line Card, Service Edge Optimized, requires modular port adapters
Physical Dimensions	14.5 W x 1.72 H x 22.40 L14.5 W x 1.72 H x 24.25 L (including ejector levers)
Weight	17.5 lbs. (est.) (7.93 Kg)
Chassis compatibility	Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems
Port density	Up to 2 modular port adapters are supported per line card.
Ethernet	· IEEE 802.3 compliant· 10 Gigabit Ethernet PHY monitoring· IEEE 802.x flow control· Full-duplex operation· Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Card density	Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4
Options	Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet TransportOptimized (basic QoS) line card.
Reliability and availability	Line card online insertion and removal (OIR) support without system impact
Network Equipment Building Standards (NEBS)	Cisco ASR 9000 Series Routers are designed to meet:· SR-3580: NEBS Criteria Levels (Level 3)· GR-1089-CORE: NEBS EMC and Safety· GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	23 to 131ºF (–5 to 55ºC)
Operating humidity (nominal) relative humidity	10 to 85%
Storage temperature	–40 to 158ºF (–40 to 70ºC)
Storage relative humidity	5 to 95%Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude	–60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards	Cisco ASR 9000 Series Routers are designed to meet:· EN300 386: Telecommunications Network Equipment (EMC)· ETSI 300 019 Storage Class 1.1· ETSI 300 019 Transportation Class 2.3· ETSI 300 019 Stationary Use Class 3.1· EN55022: Information Technology Equipment (Emissions)· EN55024: Information Technology Equipment (Immunity)· EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards	Cisco ASR 9000 Series Routers are designed to meet:· FCC Class A· ICES 003 Class A· AS/NZS 3548 Class A· CISPR 22 (EN55022) Class A· VCCI Class A· BSMI Class A· IEC/EN 61000-3-2: Power Line Harmonics· IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity	Cisco ASR 9000 Series Routers are designed to meet:· IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)· IEC/EN-61000-4-3: Radiated Immunity (10V/m)· IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)· IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)· IEC/EN-61000-4-5: Signal Ports (1kV)· IEC/EN-61000-4-5: Surge DC Port (1kV)· IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)· IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)· IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety	Cisco ASR 9000 Series Routers are designed to meet:· UL/CSA/IEC/EN 60950-1· IEC/EN 60825 Laser Safety· ACA TS001· AS/NZS 60950· FDA: Code of Federal Regulations Laser Safety

Get more information
Do you have any question about the A9K-MOD80-SE?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

-5%

Click to enlarge

Original price was: $36,777.00.Current price is: $34,938.15.

Add to compare

Add to wishlist

SKU: A9K-MOD80-SE Categories: Cisco Router ASR 9000, Cisco Routers, Routers
