A9K-MPA-2X100G-FC
Model: A9K-MPA-2X100G-FC – Cisco ASR9000 Modules & Cards
Details: ASR 9000 2-port 100GE Modular Port Adapter FCM
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
A9K-MPA-2X100G-FC Overview

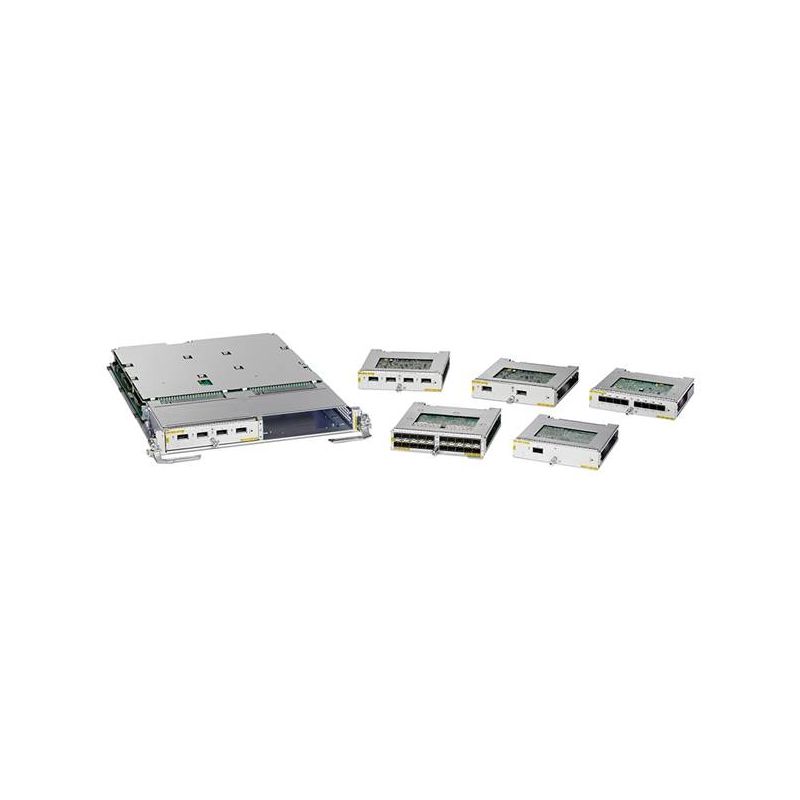

Quick Specs Figure 1 shows the appearance of A9K-MPA-2X100G-FC.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | ASR 9000 2-port 100GE Modular Port Adapter FCM |
| Model | A9K-MPA-2X100G-FC |
| Type | Modular Port Adapter |
| Number of Ports | 2 |
| Port Speed | 100 Gigabit Ethernet (100GE) |
| Product Compatibility | ASR 9000 Series |
| Form Factor | Plug-in Module |
| Bandwidth | 200 Gbps |
| Connector Type | QSFP28 |
| Operating Temperature | 0 to 40??C (32 to 104??F) |
| Storage Temperature | -40 to 70??C (-40 to 158??F) |
| Relative Humidity (Operating) | 10% to 85% non-condensing |
| Relative Humidity (Non-operating) | 5% to 95% non-condensing |
| Power Consumption | Typical: 23W |
| MTBF | Over 1,200,000 hours |
| Compliance | RoHS-5, NEBS Level 3 |
| Dimensions | 12.7 x 2.54 x 25.4 cm (5 x 1 x 10 in) |
| Safety Certifications | UL 60950-1, IEC 60950-1 |
| Warranty | 1 Year Limited Hardware Warranty |
| Additional Features | FCM (Forwarding Control Module) functionality |
