A9K-MPA-4X10GE

$0.00

Model: A9K-MPA-4X10GE Cisco ASR 9000 Modular Port Adapter
Details: Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-4X10GE ASR 9000 4-port 10GE Modular Port Adapter
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: A9K-MPA-4X10GE Categories: , ,
Description

A9K-MPA-4X10GE Overview

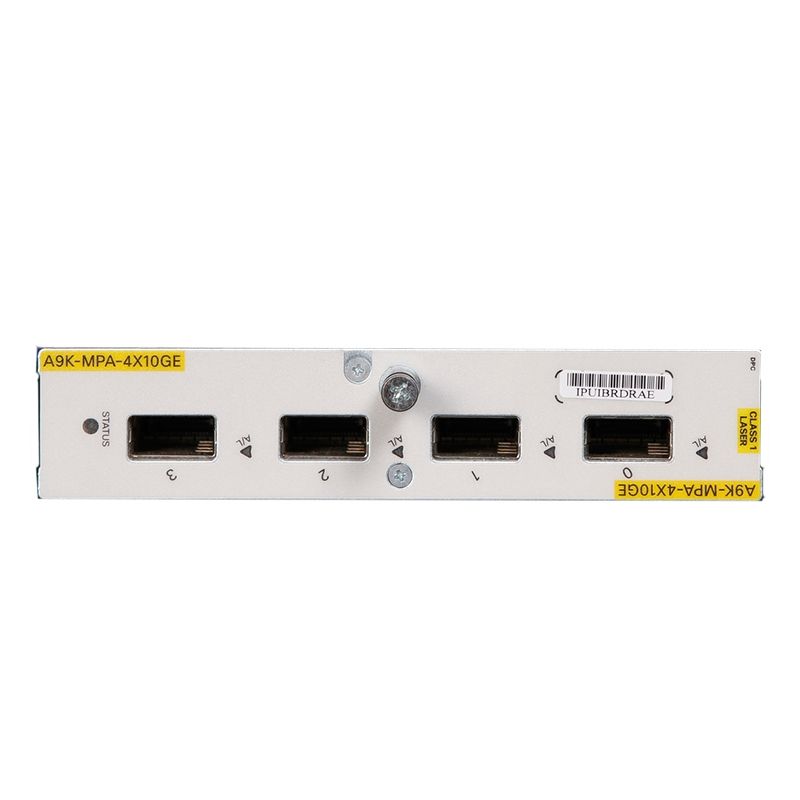

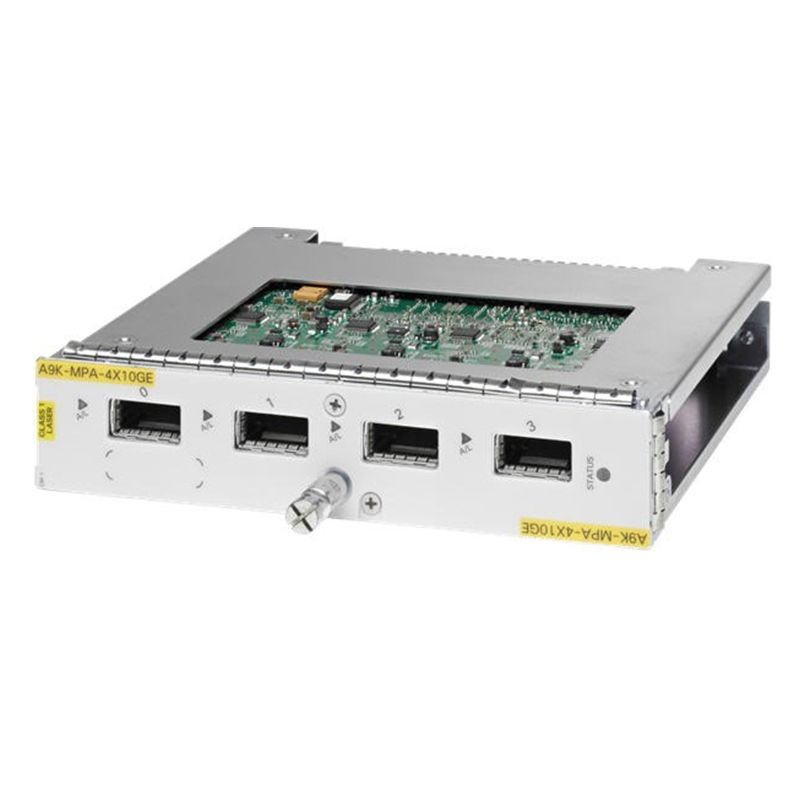

Quick Specs Figure 1 shows the appearance of A9K-MPA-4X10GE.

Table 1 shows the Quick Specs.

Type Cisco ASR 9000 4-port 10GE Modular Port Adapter
Physical Dimensions 6.37 W x 1.36 H x 6.70 L6.37 W x 1.36 H x 8.30 L (including Jackscrew)
Weight 31 oz. (0.87 Kg)
Chassis compatibility Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems
Port density Up to 2 modular port adapters are supported per line card.
Ethernet · IEEE 802.3 compliant· 10 Gigabit Ethernet PHY monitoring· IEEE 802.x flow control· Full-duplex operation· Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Card density Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4
Options Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet TransportOptimized (basic QoS) line card.
Reliability and availability Line card online insertion and removal (OIR) support without system impact
Network Equipment Building Standards (NEBS) Cisco ASR 9000 Series Routers are designed to meet:· SR-3580: NEBS Criteria Levels (Level 3)· GR-1089-CORE: NEBS EMC and Safety· GR-63-CORE: NEBS Physical Protection
Operating temperature (nominal) 41 to 104ºF (5 to 40ºC)
Operating temperature (short-term) 23 to 131ºF (–5 to 55ºC)
Operating humidity (nominal) relative humidity 10 to 85%
Storage temperature –40 to 158ºF (–40 to 70ºC)
Storage relative humidity 5 to 95%Note: Not to exceed 0.024 kg of water per kg of dry air
Operating altitude –60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)
ETSI standards Cisco ASR 9000 Series Routers are designed to meet:· EN300 386: Telecommunications Network Equipment (EMC)· ETSI 300 019 Storage Class 1.1· ETSI 300 019 Transportation Class 2.3· ETSI 300 019 Stationary Use Class 3.1· EN55022: Information Technology Equipment (Emissions)· EN55024: Information Technology Equipment (Immunity)· EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC standards Cisco ASR 9000 Series Routers are designed to meet:· FCC Class A· ICES 003 Class A· AS/NZS 3548 Class A· CISPR 22 (EN55022) Class A· VCCI Class A· BSMI Class A· IEC/EN 61000-3-2: Power Line Harmonics· IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity Cisco ASR 9000 Series Routers are designed to meet:· IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)· IEC/EN-61000-4-3: Radiated Immunity (10V/m)· IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)· IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)· IEC/EN-61000-4-5: Signal Ports (1kV)· IEC/EN-61000-4-5: Surge DC Port (1kV)· IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)· IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)· IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety Cisco ASR 9000 Series Routers are designed to meet:· UL/CSA/IEC/EN 60950-1· IEC/EN 60825 Laser Safety· ACA TS001· AS/NZS 60950· FDA: Code of Federal Regulations Laser Safety
