ACN7/8001
Model: Huawei ACN7/8001 14040566 Coaxial Connector
Details: Coaxial Connector,N,50ohm,Straight/Male,for 7/8 Inch General Feeder Cable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ACN7/8001 Overview

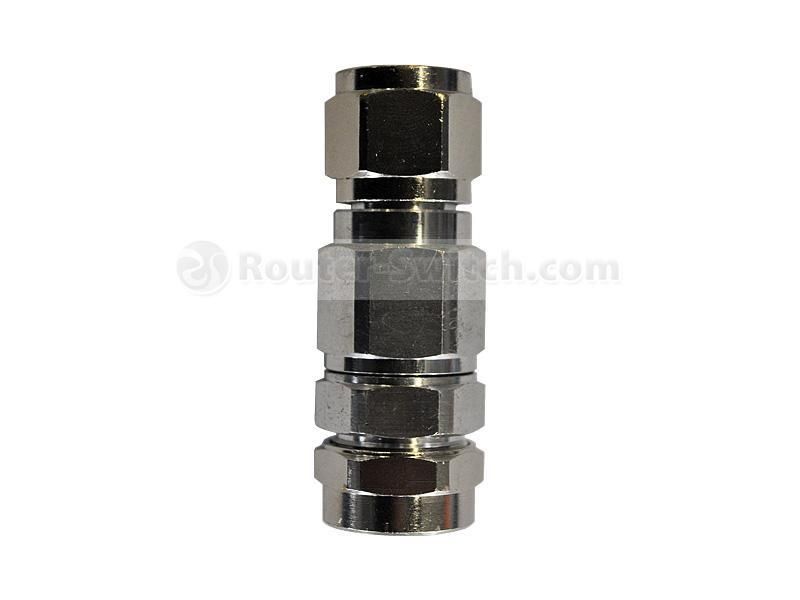

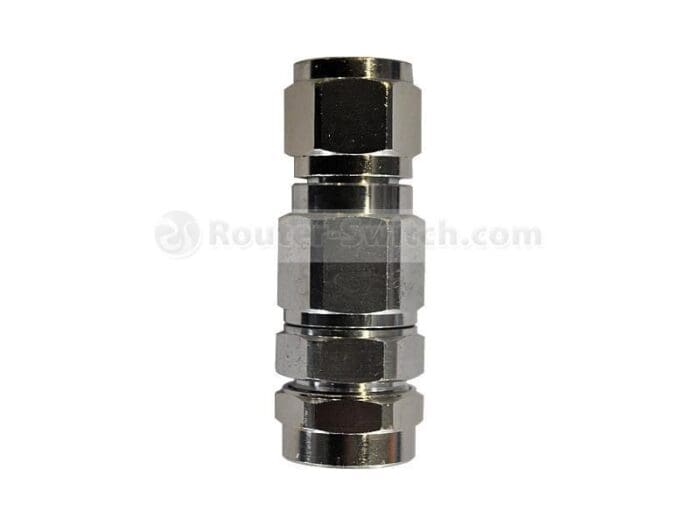

Quick Specs Figure 1 shows the appearance of ACN7/8001.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | ACN7/8001 |
| Connector Type | Coaxial |
| Connector Series | N |
| Impedance | 50 ohm |
| Configuration | Straight/Male |
| Compatible Cable Size | 7/8 Inch |
| Usage | General Feeder Cable |
| Frequency Range | DC to 11 GHz |
| Return Loss | ° 23dB |
| VSWR | 1.15 (DC to 4 GHz) |
| Connector Material | Brass |
| Body Plating | Nickel |
| Center Conductor | Beryllium Copper |
| Operating Temperature | -55°C to +155°C |
| Waterproofing Grade | IP67 |
| Max Operating Voltage | 1000V |
| Contact Resistance | ° 1.0m° |
| Insulation Resistance | ° 5000M° |
| Coupling Nut | Hex Nut |
