AD1760500

Original price was: $155.00.Current price is: $147.25.

Model: AD1760500 27010898 Huawei Directional Antenna
Details: Directional Antenna,2400~2500MHz,>17+/-0.5dBi,60deg,+/-45deg,0r,200W,N-Female*2,with bracket,875*176*63mm
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: AD1760500 Categories: , , ,
Description

AD1760500 Overview

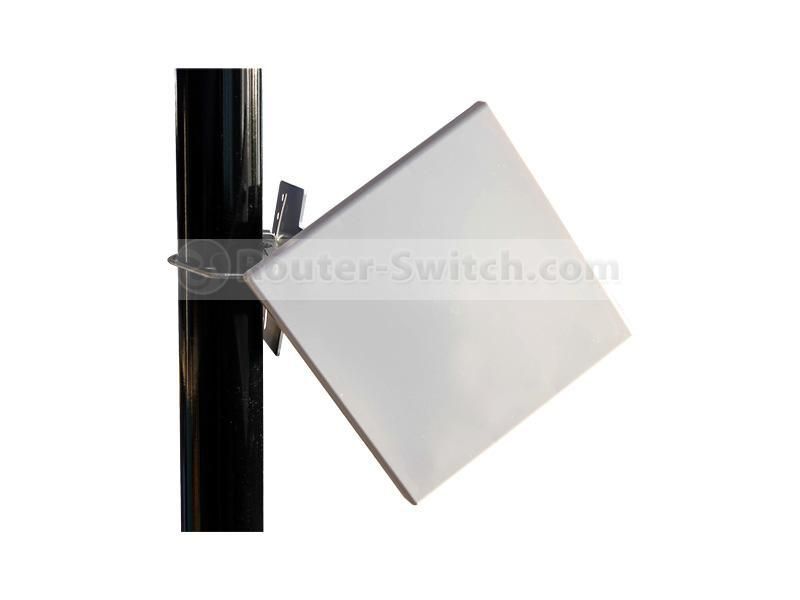

Quick Specs Figure 1 shows the appearance of AD1760500.

Table 1 shows the Quick Specs.

Brand Huawei
Model AD1760500
Type Directional Antenna
Frequency Range 2400~2500 MHz
Gain >17 +/- 0.5 dBi
Horizontal Beamwidth 60 degrees
Vertical Beamwidth °45 degrees
Impedance 50 ohms
Maximum Input Power 200 W
Connector Type N-Female*2
Mounting With bracket
Dimensions (L*W*H) 875*176*63 mm
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity Up to 95% RH
Wind Load Up to 200 km/h
Lightning Protection DC Grounded
Polarization °45°
VSWR ° 1.5
Front-to-Back Ratio > 25 dB
Construction Weatherproof, UV resistant
