-5%
AD515145D00
Model: AD515145D00 27010906 Huawei Directional Antenna
Details: Directional Antenna,5150~5850MHz,14dBi,30deg,+/-45deg,0r,5W,with bracket,N-Female*2
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AD515145D00 Overview

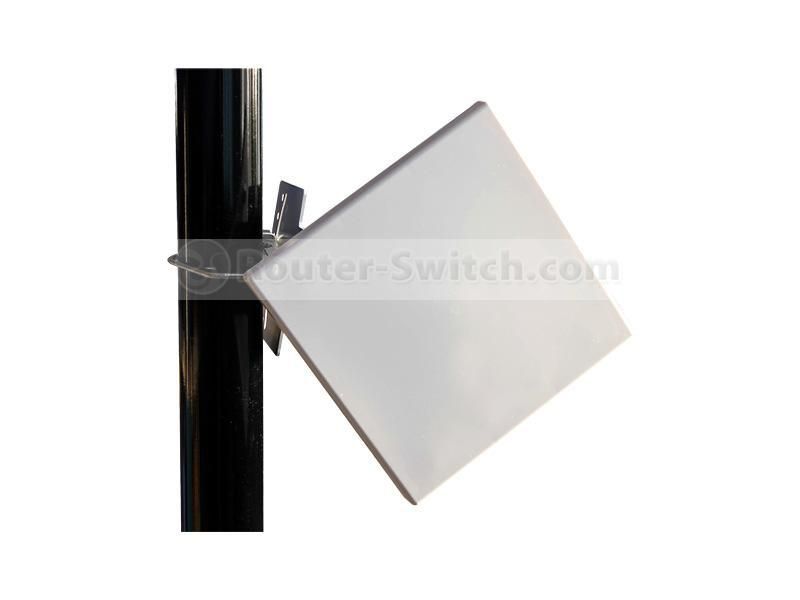

Quick Specs Figure 1 shows the appearance of AD515145D00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | AD515145D00 |
| Type | Directional Antenna |
| Frequency Range | 5150~5850 MHz |
| Gain | 14 dBi |
| Horizontal Beamwidth | 30 degrees |
| Polarity | +/- 45 degrees |
| Front to Back Ratio | 30 dB |
| VSWR | < 2.0 |
| Input Power | 5 W |
| Connector Type | N-Female * 2 |
| Mounting | Bracket Included |
| Impedance | 50 Ohms |
| Operating Temperature Range | -40 to 65 ° |
| Storage Temperature Range | -40 to 80 ° |
| Humidity | 5% to 95% |
| Lightning Protection | Direct Ground |
| Material | Aluminum Alloy, UV-stabilized Plastic |
| Color | White |
| Polarization | Vertical and Horizontal |
| Warranty | 1 Year |
