AJ763BR
Model: AJ763BR – HPE Server Network Cards
Details: HP 82E PCIe 8Gb FC Dual Port Reman HBA S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AJ763BR Overview

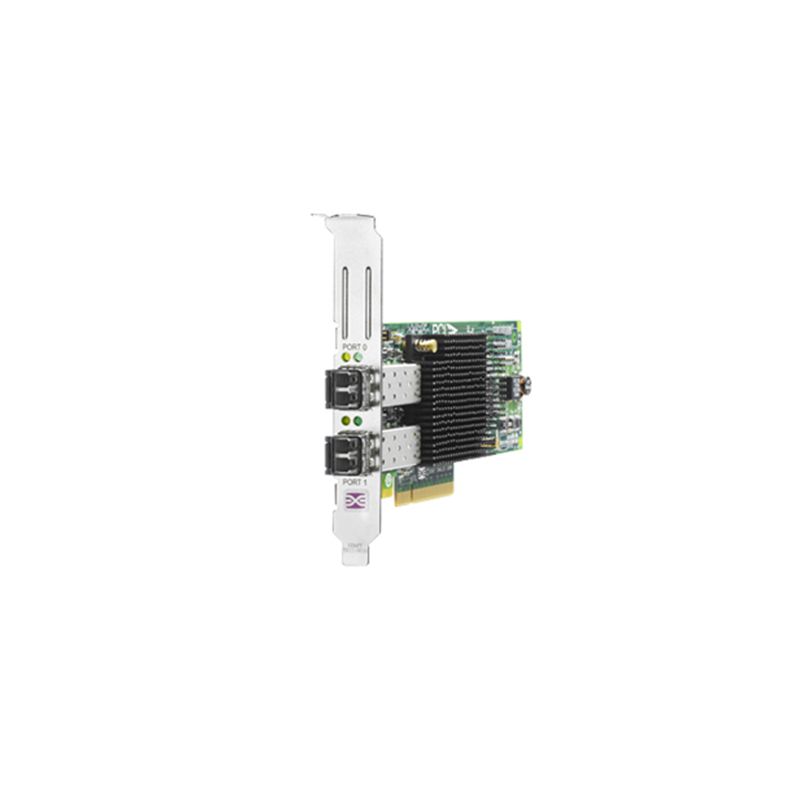

Quick Specs Figure 1 shows the appearance of AJ763BR.
Table 1 shows the Quick Specs.
| Expansion Slots | SFP+ |
| Ports | 2 × 8Gb Fibre Channel |
| Environmental Parameters | Min Operating Temperature : 32 °FMax Operating Temperature : 131 °FHumidity Range Operating : 5 – 95% (non-condensing) |
| Interface Provided | Type : NetworkInterface : 8Gb Fibre Channel (short wave)Qty : 2Connector Type : LC multi-modeConnector Qty : X 2Type : 8Gb Fibre Channel (short wave) |
| Interface Required | None |
| Miscellaneous | Compliant Standards : RoHSIncluded Accessories : 2 x 8 Gb SFP, Full-height bracket, Low-profile bracket |
| Networking | Type : Host bus adapterForm Factor : Plug-in cardConnectivity Technology : WiredData Transfer Rate : 8.5 GbpsData Link Protocol : 2Gb Fibre Channel (Short Wave), 4Gb Fibre Channel (Short Wave), 8Gb Fibre Channel (Short Wave)Cabling Type : Fiber opticPorts Qty : 2Interface Type : PCI Express 2.0 x4 / PCI Express x8PCI Specification Revision : PCIe 2.0Low Profile : Low profile |
| Power Device | None |
| Dimensions | Depth : 6.6 inHeight : 2.7 in |
