AntiDDoS8080-BASE-DC-200
Model: AntiDDoS8080-BASE-DC-200 0235G7R7 Huawei Anti-DDoS8000 DDoS Protection Systems
Details: AntiDDoS8080 200G DC Basic Configuration(include X8 DC Chassis,2*SRU200A,1*SFU200C)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AntiDDoS8080-BASE-DC-200 Overview

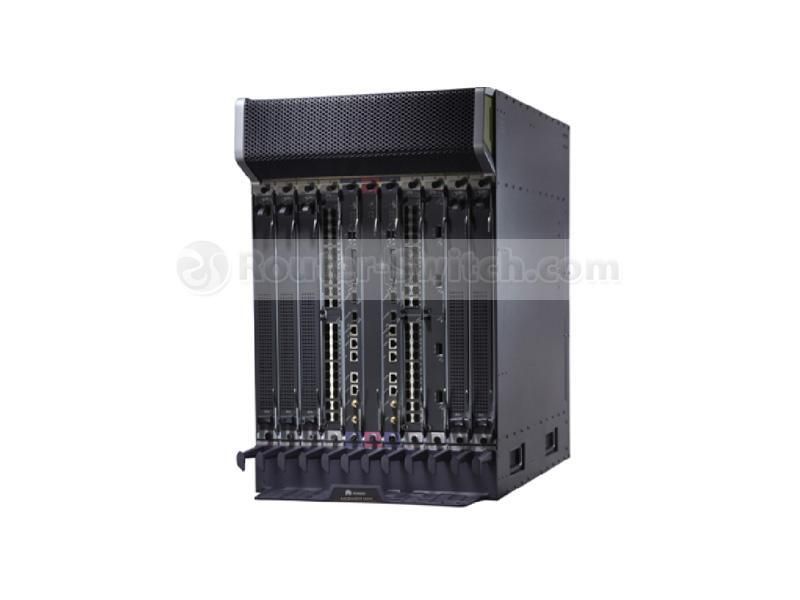

Quick Specs Figure 1 shows the appearance of AntiDDoS8080-BASE-DC-200.
Table 1 shows the Quick Specs.
| Throughput | Up to 720 Gbit/s |
| Throughput/Slot | Up to 160 Gbit/s |
| Mitigation Rate/Slot | Up to 60 Mpps |
| Latency | 80 μs |
| Expansion Slots | 8 |
| Expansion LPU | FW-LPUF-120, 2 sub-slotsFW-LPUF-240, 2 sub-slots |
| Expansion Interfaces | 24 x GE (SFP); 5 x 10 GE (SFP+); 6 x 10 GE (SFP+); 12 x 10 GE (SFP+); 1 x 40 GE (CFP); 1 x 100 GE (CFP) |
| Height x Width x Depth | 620 mm x 442 mm x 650 mm (14U) |
| Weight | 43.2 kg (empty), 112.9 kg (full) |
| Power Supply | Rated input voltage:DC: -48VAC: 175V to 264V; 50 Hz/60 HzMaximum input voltage range:DC: -72V to -38VAC: 90V to 264V; 50 Hz/60 Hz |
| Power Consumption | 3 x FW-LPUF-240 + 5 x ADS-SPUD-B + 10 x ADS-SPC-80-01:DC: 4,025W (avg.), 4,823W (max.)AC: 4,282W (avg.), 5,132W (max.) |
| Power Redundancy | DC: 4 hot-swappable PEM modulesAC: 4 PEM modules + 1 external AC power chassis |
| Operating Temperature | 0°C to 45°C (long-term), -5°C to 50°C (short-term) |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% RH to 85% RH, non-condensing (long-term), 5% RH to 95% RH, non-condensing (short-term) |
| Storage Humidity | 0% RH to 95% RH |
| Safety Certifications | Electro Magnetic Compatibility (EMC) certificationCB, Rohs, FCC, MET, C-tick, and VCCI certification |
