-5%
AR-8SA-W
Model: Huawei Router Ethernet Interface Card AR-8SA-W
Details: 8-Port Sync/Async Serial WAN Interface Card
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR-8SA-W Overview

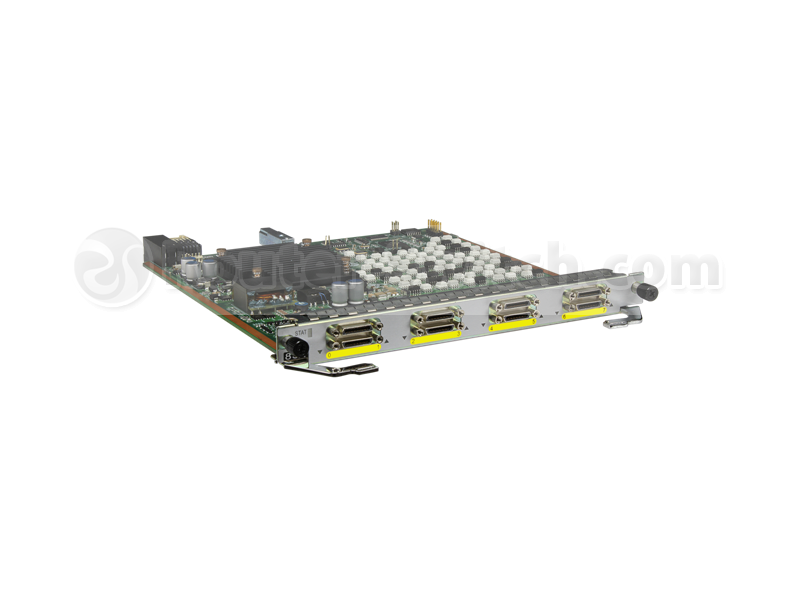

Quick Specs Figure 1 shows the appearance of AR-8SA-W.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | AR-8SA-W |
| Interface Type | Sync/Async Serial WAN |
| Port Count | 8 |
| Data Rate | 64 Kbps to 2 Mbps |
| Connector Type | DB-60 |
| Supported Protocols | PPP, Frame Relay, HDLC, X.25 |
| Interface Compliance | EIA/TIA-232, EIA/TIA-449, V.35, X.21 |
| Power Consumption | 15W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 45 mm x 238 mm x 195 mm (H x W x D) |
| EMI Certifications | FCC Part 15, CE |
| Mean Time Between Failures (MTBF) | >100,000 hours |
| Installation | Plug and Play |
| LED Indicators | Activity, Status |
| Compatibility | Compatible with Huawei AR series routers |
| Warranty | 1 Year Limited Warranty |
