Name: AR0B0037BA
SKU: AR0B0037BA
Availability: InStock

AR0B0037BA

$1,395.70

Model: Huawei AR G3 AR3600 Series Router Chassis AR0B0037BA
Details: AR3670 CHASSIS
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

AR0B0037BA Overview

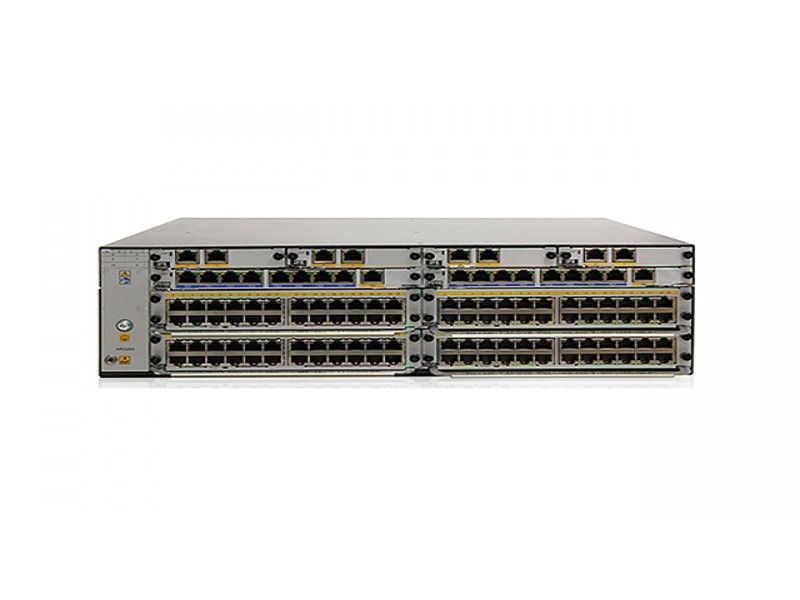

Quick Specs Figure 1 shows the appearance of AR0B0037BA.

Table 1 shows the Quick Specs.

Service Forwarding Performance	4.5 Gbit/s
SIC Slots	2
WSIC Slots(default/maximum)**	7/8
XSIC slots(default/maximum)**	0/6
Management Port	One Ethernet port
USB 2.0 Ports	2
Mini-USB Port	1
Auxiliary or Console Port	1
Hard Disk	1 TB
Memory (default/maximum)	8 GB/24 GB
Flash	8 GB
Virtual Machines	8 (Based on VM, the customers can install Windows OS or Linux OS)
Maximum Power	700W per power supply (dual power supplies supported)
AC Power Supply	100V to 240V
Power Frequency	50/60 Hz
Dimensions (W x D x H)	442 mm x 470 mm x 130.5 mm
Weight	11 kg (without power modules and cards)
Ambient Temperature	0°C to 45°C
Environment Relative Humidity	5% to 95% (non-condensing)
Basic Functions	ARP, DHCP, NAT, and sub-interface management
WLAN (AC)	AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio frequency management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, and more
IPv4 Unicast Routing	Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	IGMP聽 v1/v2/v3, IGMP snooping v1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS	LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR
VPN	IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and smart VPN
QoS	DiffServ, MPLS QoS, priority mapping, CAR, traffic shaping, congestion avoidance (IP or DSCP priority-based WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), HQoS, FR QoS, SAC, and hardware QoS
Security	ACL, firewall, 802.1x authentication, MAC address authentication, web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP anti-attack, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, attack source tracing, and state-approved algorithms (SM1, SM2, SM3 SCB2 algorithms)
Management and Maintenance	Upgrade management, device management, web NMS, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, USB-based deployment, Barcode Scanning, and command line

Get more information
Do you have any question about the AR0B0037BA?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
