AR0M0012BA00
Model: Huawei Next generation AR1200 Series Router AR0M0012BA00
Details: AR1220,2GE WAN,8FE LAN,2 USB,2 SIC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
AR0M0012BA00 Overview

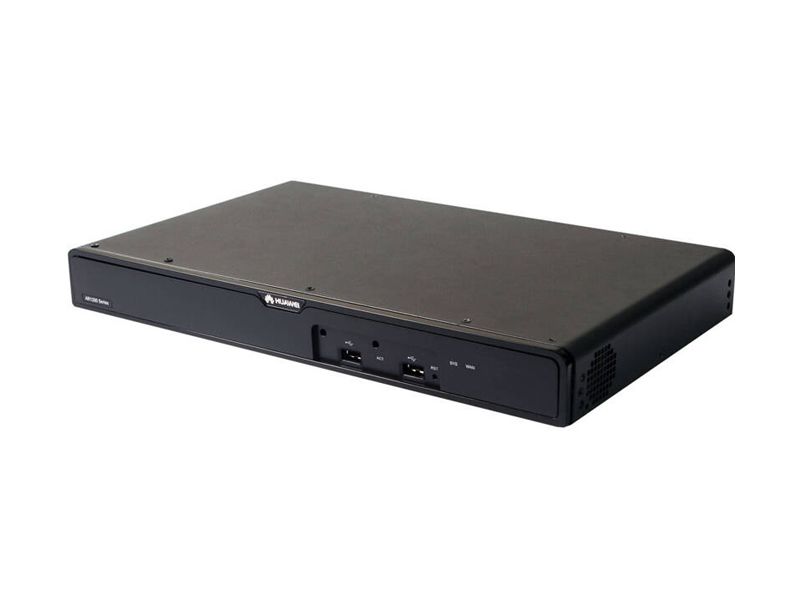

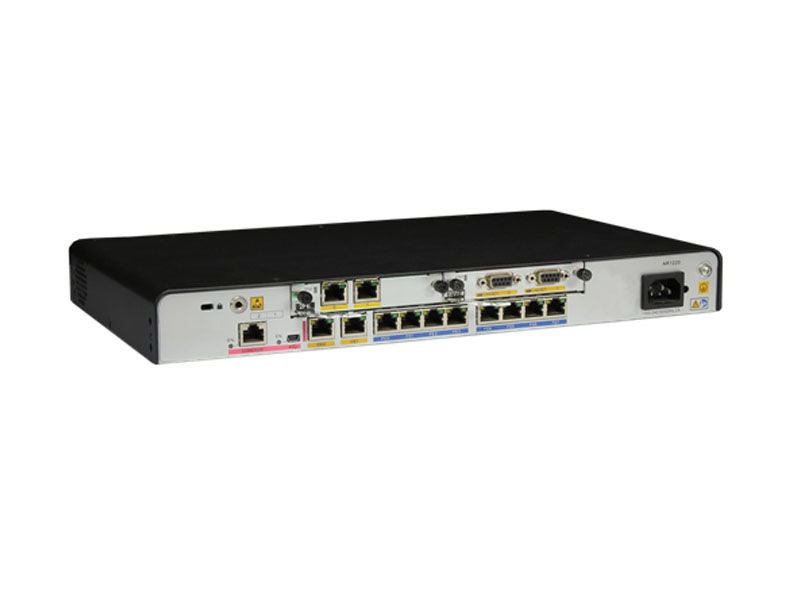

Quick Specs Figure 1 shows the appearance of AR0M0012BA00.
Table 1 shows the Quick Specs.
| Type | AR1220, 2GE WAN, 8FE LAN, 2 USB, 2 SIC |
| Software Version | V200R001C00 and later |
| Dimensions (W x D x H) | 390.0 mm x 232.5 mm x 44.5 mm |
| Memory | 512 MB |
| Flash | 256 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Not supported |
| Network data encryption (SM1/2/3/4) card | Supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | None |
| Antenna interfaces | None |
| Service interfaces (standard configuration) | WAN interfaces: 2 GE electrical interfacesLAN interfaces: 8 10/100M auto-sensing Ethernet electrical interfaces |
| Interface number | LAN interfaces: FE0-FE7 |
| Extended slots | 2 SIC slots |
| Power module type | Built-in AC power module |
| Rated voltage range | 100 V AC/240 V AC, 50 Hz/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| RPS150 | Not supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 2.9 kg (6.39 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Built-in fans |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Desk mounting, wall mounting, rack mounting |
