Sold out
AR0M0022BA00
Model: Huawei AR G3 AR2200 Series Router AR0M0022BA00
Details: AR2220,3GE WAN(1GE Combo),2 USB,4 SIC,2 WSIC,1 DSP Slot,150W AC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
AR0M0022BA00 Overview

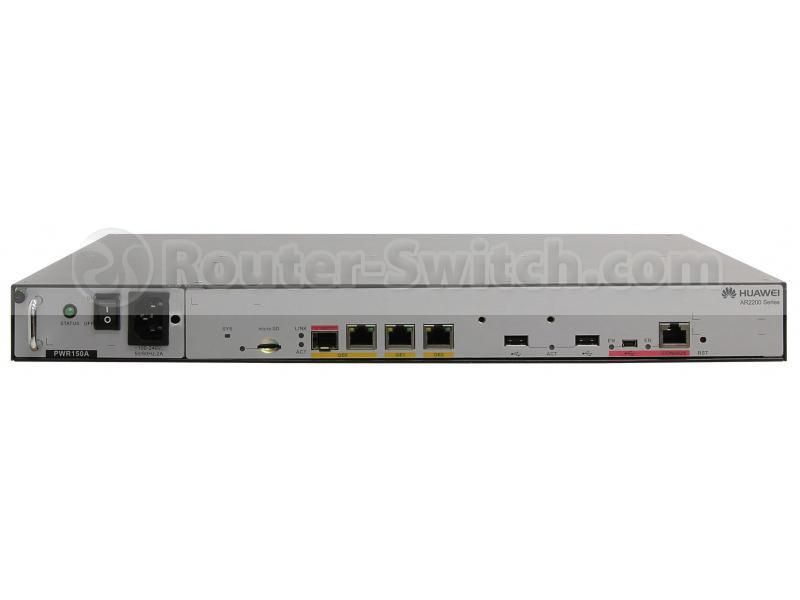

Quick Specs Figure 1 shows the appearance of AR0M0022BA00.
Table 1 shows the Quick Specs.
| Type | AR2220, 3GE WAN(1GE Combo), 2 USB, 4 SIC, 2 WSIC, 1 DSP Slot, 150W AC Power |
| Software Version | V200R001C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 44.5 mm |
| Memory | 2 GB |
| Flash | 16 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Not supported |
| Network data encryption (SM1/2/3/4) card | Supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Supported (2 GB) |
| Antenna interfaces | None |
| Service interfaces (standard configuration) | WAN interfaces: 2 GE electrical interfaces and 1 GE combo interfaceLAN interfaces: none |
| Interface number | LAN interfaces: none |
| Extended slots | 4 SIC slots and 2 WSIC slots |
| Power module type | Built-in AC power module |
| Rated voltage range | 100 V AC/240 V AC, 50 Hz/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| RPS150 | Not supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 7 kg (15.4 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Built-in fans |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
