AR0M0024DC00
Model: Huawei AR2240 Series Router AR0M0024DC00
Details: AR2240,Service and Router Unit 40,4 SIC,2 WSIC,2 XSIC,350W DC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR0M0024DC00 Overview

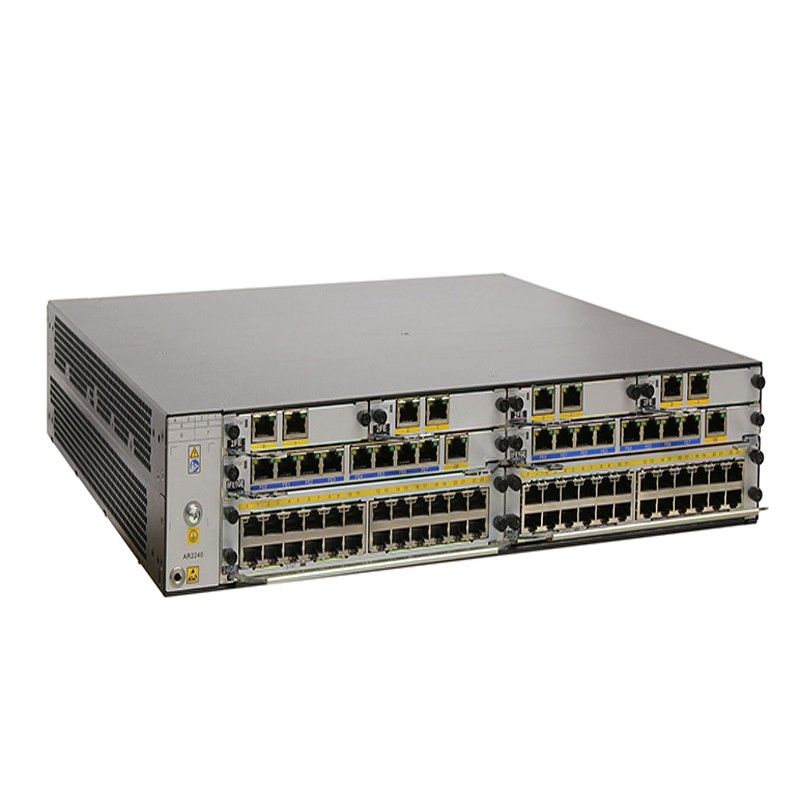

Quick Specs Figure 1 shows the appearance of AR0M0024DC00.
Table 1 shows the Quick Specs.
| WAN Speed with Services*** | 1 Gbit/s (With SRU40)2 Gbit/s (With SRU80)1 Gbit/s (With SRU100E)4.5 Gbit/s (With SRU200) |
| Firewall Performance (large packets) | 5.5 Gbit/s (With SRU40)9.5 Gbit/s (With SRU80)10 Gbit/s (With SRU100E)15 Gbit/s (With SRU200) |
| Number of recommended users | 1,000 |
| Fixed WAN Ports | SRU40: 3 x GE (2 x Combo)SRU80: 3 x GE (2 x Combo)SRU100E: 4 x GE Combo+ 2 x GE SFPSRU200: 4 x GE Combo+ 2 x 10 GE SFP+ |
| SIC Slots | 4 |
| WSIC Slots (default/max**) | 2/4 |
| XSIC Slots (default/max**) | 2/4 |
| EXSIC Slot (shared with XSIC slots) | 1 |
| DSP Slots | 0/3 |
| USB 2.0 Ports | 1/2 |
| Mini-USB Ports | 1 |
| Console Port | 1 |
| Memory | 2 GB/4 GB |
| Flash(default/max**) | 2 GB/8 GB |
| Maximum Power | 350W (Single Power Module)700W (Dual Power Module) |
| Redundant Power Supply | Internal: AC, DC |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | -48V to -60V |
| Dimensions (height x width x depth) | 88.1 mm x 442 mm x 470 mm |
| Weight | 8.95 kg (without power module and interface card) |
| Ambient Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non-condensing) |
