AR0M12VWBA00
Model: Huawei AR1220VW AR0M12VWBA00 Router
Details: Huawei AR1220VW AR0M12VWBA00,2GE WAN,8FE LAN,802.11b/g/n AP,2 USB,2 SIC,build-in 32-channel DSP
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR0M12VWBA00 Overview

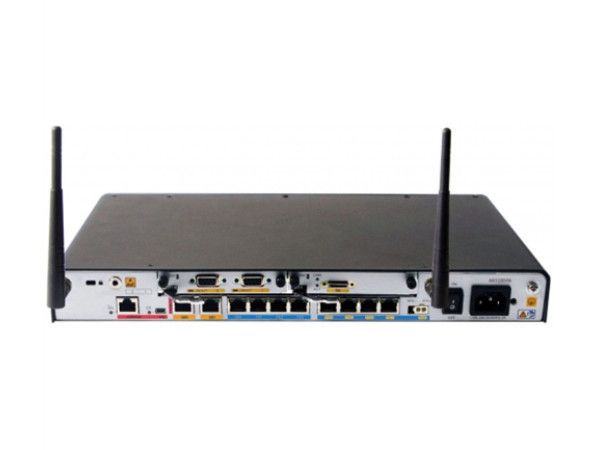

Quick Specs Figure 1 shows the appearance of AR0M12VWBA00.
Table 1 shows the Quick Specs.
| WAN speed with services*** | 200 Mbit/s |
| Firewall Performance (large packet) | 900 Mbit/s |
| Device Switching Capacity | 8 Gbit/s |
| Slot Switching Bandwidth | SIC & WSIC slots 2 Gbit/s |
| Number of Recommended Users | 100 |
| Fixed WAN Ports | 2 x GE |
| Fixed LAN Ports | 8 x FE (can be configured as WAN interfaces) |
| SIC Slots | 2 |
| WSIC Slots (default/max) | 0/1 |
| DSP Slots | 32 channels supported by default |
| Wi-Fi | 802.11b/g/n |
| USB 2.0 Ports | 2 |
| Mini-USB Ports | 1 |
| Serial Auxiliary/Console Port | 1 |
| Memory | 512 MB |
| Flash | 256 MB |
| Max. Power | 60W |
| PoE Power | External 100W |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | – |
| Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
| Weight | 2.9Â kg (without interface cards) |
| Ambient Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non-condensing) |
