-5%
AR0MSLA1XA01
Model: Huawei Router Serial Port Interface Card AR0MSLA1XA01
Details: 1-Port ADSL2+ ANNEX A/M WAN Interface Module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR0MSLA1XA01 Overview

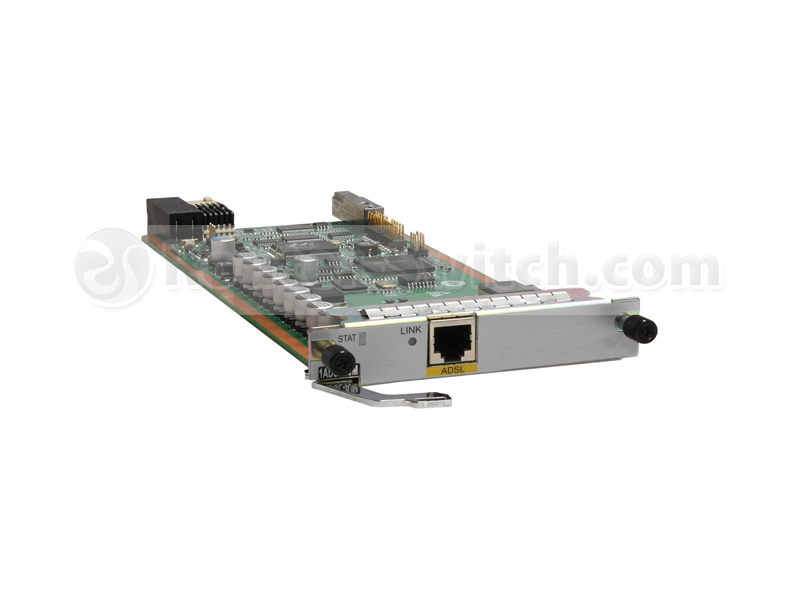

Quick Specs Figure 1 shows the appearance of AR0MSLA1XA01.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | AR0MSLA1XA01 |
| Port | 1-Port |
| Type | ADSL2+ |
| Annex | A/M |
| Interface Type | WAN |
| Compatibility | Supports multiple vendor DSLAMs |
| Max Downstream Rate | 24 Mbps |
| Max Upstream Rate | 1 Mbps |
| Protocols | ITU G.992.5 (G.dmt.bisplus), G.992.3 (G.dmt.bis), G.992.1 (G.dmt) |
| Line Coding | Trellis coding, Reed-Solomon |
| Impedance | 100 ohms |
| MTU | Up to 1500 bytes |
| Modulation | Discrete Multi-Tone (DMT) |
| Downstream Frequency Range | 138 kHz to 1104 kHz |
| Upstream Frequency Range | 26 kHz to 138 kHz |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% |
| Dimensions | 98 mm x 84 mm x 11 mm |
