Name: AR1220C-S
SKU: AR1220C-S
Availability: InStock

AR1220C-S

Model: AR1220C-S – Huawei AR1200 Router
Details: Huawei AR1220C,8GE LAN,5GE WAN,2 USB,2 SIC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

AR1220C-S Overview

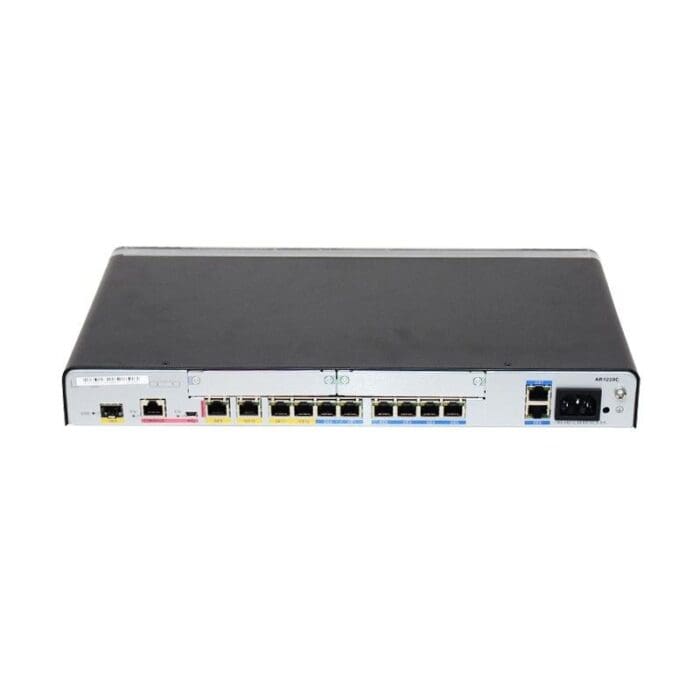

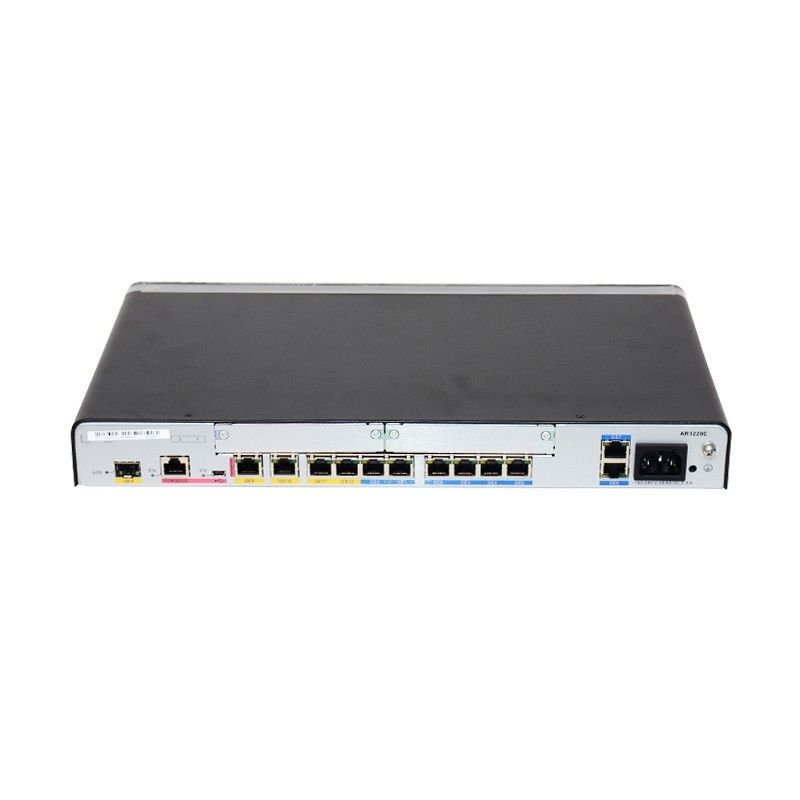

Quick Specs Figure 1 shows the appearance of AR1220C-S.

Table 1 shows the Quick Specs.

WAN speed with services***	200 Mbit/s
Firewall Performance (large packet)	1,000 Mbit/s
Device Switching Capacity	8 Gbit/s
Slot Switching Bandwidth	SIC & WSIC slots: 2 Gbit/s
Number of Recommended Users	100
Fixed WAN Ports	4 x GE + 1 x GE SFP
Fixed LAN Ports	8 x GE (can be configured as WAN interfaces)
SIC Slots	2
WSIC Slots (default/max)	0/1
DSP Slots	–
Wi-Fi	–
USB 2.0 Ports	2
Mini-USB Ports	1
Serial Auxiliary/Console Port	1
Memory	512 MB
Flash	512 MB
Max. Power	25W
PoE Power	–
AC Power	100V to 240V
Frequency	50 Hz/60 Hz
DC power	–
Dimensions (H x W x D)	44.5 mm x 390 mm x 220 mm
Ambient Temperature	0°C to 45°C**
Relative Humidity	5% to 95% (non-condensing)
Basic Features	DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management
Voice	RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP)	AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC)	AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
3G	3G Interface card (WCDMA)
LTE	LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
IPv4 Unicast Routing	Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS	LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN	IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
QoS	DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)
Security	ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing
Management and maintenance	Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

Get more information
Do you have any question about the AR1220C-S?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

-5%

Click to enlarge

Original price was: $526.00.Current price is: $499.70.

Add to compare

Add to wishlist

SKU: AR1220C-S Categories: AR1200 Series Enterprise Routers, Huawei Routers, Routers

Security/Data Center/Networking

End-to-End Project Support
Smart Industrial Solutions
Global Expert Team
Certified ICT Professionals

Ask the Experts

24/7 Online Service

We're Always Here

+1-737-282-1616 (USA)

+971 58 6900 135 (United Arab Emirates)

+966 55 0033 948 (Saudi Arabia)

Partner with Us

Join Global Partner Program in Pakistan

Get Started

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

HPE 840G7-Z97 i7-10510U/16G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,146.65.Current price is: $1,089.32.
HPE 840G7-Q17 i7-10510U/8G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-P99 i5-10210U/16G/512G/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-Q16 i5-10210U/8G/256G/Integrated Graphics Card/FHD 1920*1080 Original price was: $924.80.Current price is: $878.56.

Description

WAN speed with services***	200 Mbit/s
Firewall Performance (large packet)	1,000 Mbit/s
Device Switching Capacity	8 Gbit/s
Slot Switching Bandwidth	SIC & WSIC slots: 2 Gbit/s
Number of Recommended Users	100
Fixed WAN Ports	4 x GE + 1 x GE SFP
Fixed LAN Ports	8 x GE (can be configured as WAN interfaces)
SIC Slots	2
WSIC Slots (default/max)	0/1
DSP Slots	–
Wi-Fi	–
USB 2.0 Ports	2
Mini-USB Ports	1
Serial Auxiliary/Console Port	1
Memory	512 MB
Flash	512 MB
Max. Power	25W
PoE Power	–
AC Power	100V to 240V
Frequency	50 Hz/60 Hz
DC power	–
Dimensions (H x W x D)	44.5 mm x 390 mm x 220 mm
Ambient Temperature	0°C to 45°C**
Relative Humidity	5% to 95% (non-condensing)
Basic Features	DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management
Voice	RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP)	AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC)	AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)
3G	3G Interface card (WCDMA)
LTE	LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
IPv4 Unicast Routing	Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS	LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN	IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
QoS	DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)
Security	ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing
Management and maintenance	Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI
