AR1220EVW

Original price was: $629.00.Current price is: $597.55.

Model: Huawei AR1220EVW,2GE COMBO,8GE LAN,802.11b/g/n AP,2 USB,2 SIC,build-in 32-channel DSP,PoE Power Adapter
Details: Huawei AR1220EVW,2GE COMBO,8GE LAN,802.11b/g/n AP,2 USB,2 SIC,build-in 32-channel DSP,PoE Power Adapter
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: AR1220EVW Categories: , ,
Description

AR1220EVW Overview

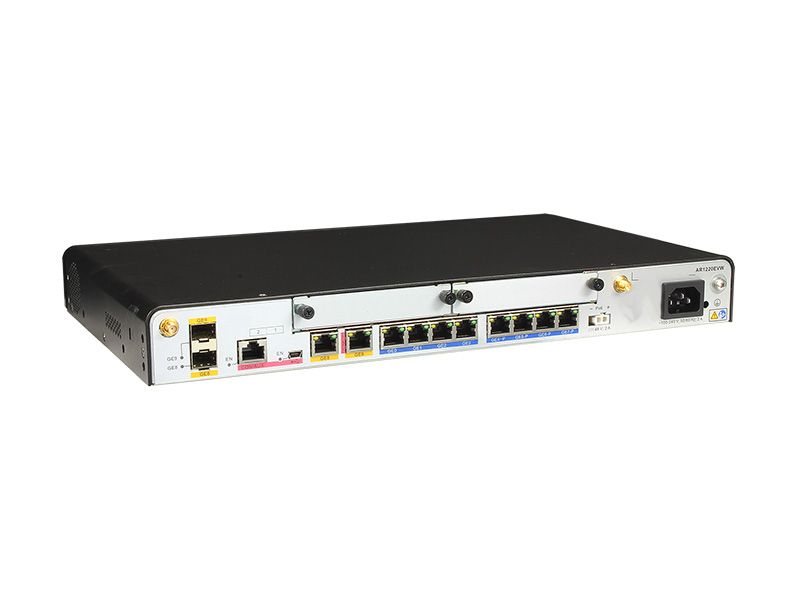

Quick Specs Figure 1 shows the appearance of AR1220EVW.

Table 1 shows the Quick Specs.

WAN speed with services*** 400 Mbit/s
Firewall Performance (large packet) 1,800 Mbit/s
Device Switching Capacity 8 Gbit/s
Slot Switching Bandwidth SIC & WSIC slots 2 Gbit/s
Number of Recommended Users 100
Fixed WAN Ports 2 x GE Combo
Fixed LAN Ports 8 x GE (can be configured as WAN interfaces)
SIC Slots 2
WSIC Slots (default/max) 0/1
DSP Slots 32 channels supported by default
Wi-Fi 802.11b/g/n
USB 2.0 Ports 2
Mini-USB Ports 1
Serial Auxiliary/Console Port 1
Memory 1 GB
Flash 512 MB
Max. Power 60W
PoE Power External 100W
AC Power 100V to 240V
Frequency 50 Hz/60 Hz
DC Power –
Dimensions (H x W x D) 44.5 mm x 390 mm x 220 mm
Weight 2.9kg (without interface cards)
Ambient Temperature 0°C to 45°C
Relative Humidity 5% to 95% (non-condensing)
Basic Features DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)
WLAN (AP) AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)
WLAN (AC) AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management）
3G 3G Interface card (WCDMA)
LTE LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP
IPv4 Unicast Routing Routing policy, static route, RIP, OSPF, IS-IS, and BGP
IPv6 Unicast Routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP
MPLS LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN
QoS DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing
Management and Maintenance Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI

Get more information
Do you have any question about the AR1220EVW?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
