Sold out
AR129
Model: Huawei Next Generation AR120 Series Router AR129
Details: AR129,1VDSL WAN,4FE LAN
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
AR129 Overview

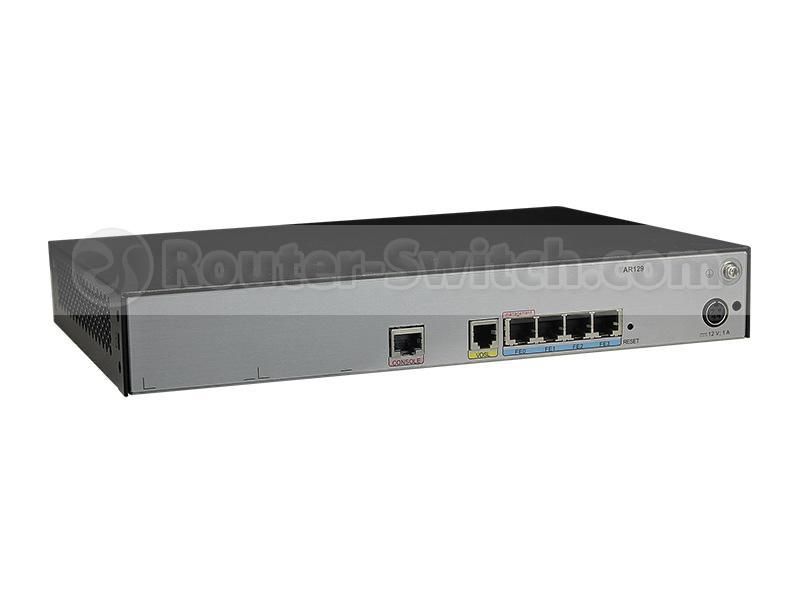

Quick Specs Figure 1 shows the appearance of AR129.
Table 1 shows the Quick Specs.
| WAN speed with services*(IMIX) | 50 Mbit/s |
| Number of recommended users | 20 |
| Fixed WAN Ports | 1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J) |
| Fixed Ethernet Switching Ports | 4 x FE (can be configured as WAN interfaces) |
| Fixed Voice Ports | — |
| Integrated 3G | — |
| Wi-Fi | — |
| USB 2.0 Ports | 1 |
| Console Ports | 1 |
| Memory Size | 256 MB |
| Flash Memory | 256 MB |
| PoE Power | PoE Power |
| Maximum Power | 24W |
| Power Supply (AC) | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| Dimensions (H x W x D) | 44.5 mm x 300 mm x 220 mm (1.7 in. x 11.8 in. x 8.66 in.) |
| Operating Temperature | 0oC to 45oC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Basic Features | ARP, PBR, DNS, DHCP, and NAT |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
| IPv4 Routing | Static route, RIP, and BGP |
| IPv6 Routing | Static route, RIPng, and BGP4+ |
| Multicast | IGMP v1/v2/v3, MLD |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN |
| QoS | MQC, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), and MQC (traffic classification, traffic behavior, and traffic policy) |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, blacklist, IP source tracing, PKI, and HTTPS |
| Management and Maintenance | Upgrade management, device management, web-based GUI, SNMP v1/v2c/v3 (AR129CGVW-L only), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, CLI |
