AR161-S
Model: AR161-S – Huawei AR161-S Gigabit Enterprise Router
Details: Huawei AR161-S Gigabit Enterprise Router, 1 GE WAN, 4 GE LAN
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR161-S Overview

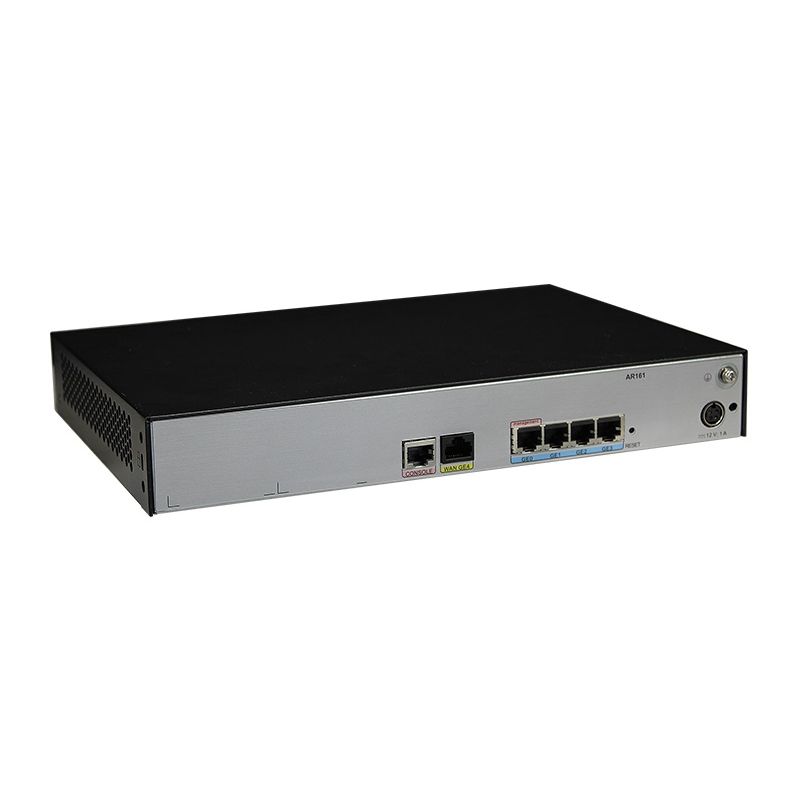

Quick Specs Figure 1 shows the appearance of AR161-S.
Table 1 shows the Quick Specs.
| Item | Specification |
| Processor | Dual-core, 1 GHz |
| Memory | 512 MB |
| Flash | 512 MB |
| Micro SD card (default sd1) | None |
| Hard disk | Not supported |
| Dimensions (H x W x D) | With no mounting bracket installed: 44.0 mm x 300.0 mm x 216.4 mm (1.73 in. x 11.81 in. x 8.52 in.)With mounting brackets installed: 44.0 mm x 482.6 mm x 216.4 mm (1.73 in. x 19.00 in. x 8.52 in.) |
| Rated input voltage (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum output current | 2 A |
| Maximum output power | 24 W |
| RPS power supply | Not supported |
| PoE power supply | Not supported |
| Maximum power consumption | 9.3 W |
| Fans | None |
| Airflow (facing the front panel) | None |
| Management interfaces | 1 (RJ45) |
| CON/AUX interfaces | 1 (RJ45) |
| USB 2.0 interfaces | 1 |
| Service interfaces | WAN interface: one GE electrical interfaceLAN interfaces: four GE electrical interfaces |
| Extended slots | Not supported |
| Operating temperature | 0°C to 45°C (32°F to 113°F)NOTE:When the altitude is 1800 m-5000 m (5906ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating relative humidity | 5% to 95%, noncondensing |
| Operating altitude | < 5000 m (16404.2 ft.) |
