Sold out
AR169W
Model: Huawei AR169W,1VDSL WAN,4GE LAN,WIFI 2.4G
Details: Huawei AR169W,1VDSL WAN,4GE LAN,WIFI 2.4G
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
AR169W Overview

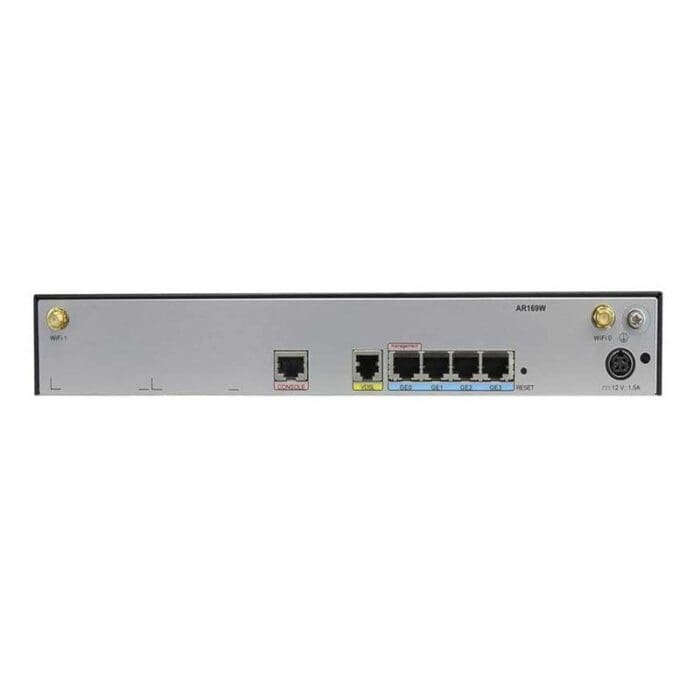

Quick Specs Figure 1 shows the appearance of AR169W.
Table 1 shows the Quick Specs.
| WAN speed with services* (IMIX) | 150 Mbit/s |
| Number of recommended users | 50 |
| Fixed WAN Ports | 1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J) |
| Fixed Ethernet Switching Ports | 4 x GE (can be configured as WAN interfaces) |
| USB 2.0 Ports | 1 |
| Console Ports | 1 |
| Memory Size | 512 MB |
| Flash Memory | 512 MB |
| Maximum Power | 24W |
| Power Supply (AC) | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| Dimensions (H x W x D) | 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.) |
| Operating Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP, BEST, DISA, and SBC (only voice models support voice features) |
| WLAN (AP) | AP management, WLAN QoS, WLAN security, WLAN radio management, and WLAN user management (only WLAN models support WLAN AP features) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and Smart VPN |
| QoS | DiffServ mode, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), hierarchical QoS, and Smart Application Control (SAC) |
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, and PKI |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, RMON, NTP, CWMP, auto-config, site deployment using USB disk, NetConf, and CLI |
