AR2202-48FE
Model: Huawei AR G3 AR2200 Series Router AR2202-48FE
Details: AR2202-48FE,2GE WAN(1GE Combo),1 E1,1 SA,1 USB,48FE LAN,60W AC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR2202-48FE Overview

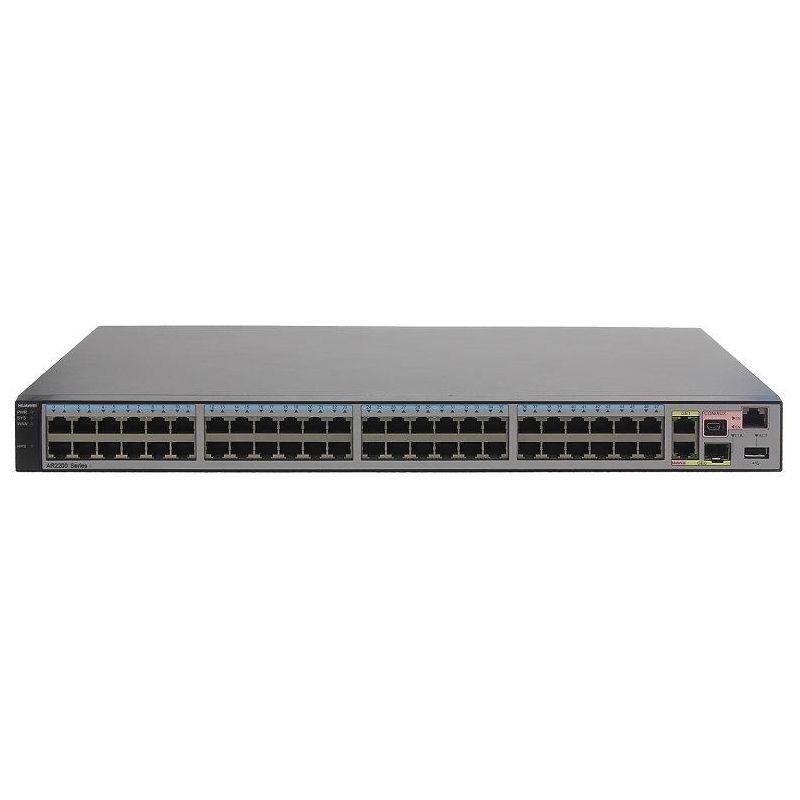

Quick Specs Figure 1 shows the appearance of AR2202-48FE.
Table 1 shows the Quick Specs.
| Type | AR2202-48FE, 2GE WAN(1GE Combo), 1 E1, 1 SA, 1 USB, 48FE LAN, 60W AC Power |
| Software Version | V200R003C00 and later |
| Dimensions (W x D x H) | 442.0 mm x 314.9 mm x 43.6 mm |
| Memory | 512 MB |
| Flash | 512 MB |
| Hard disk | None |
| Service and Router Unit (SRU) | Not supported |
| Network data encryption (SM1/2/3/4) card | Not supported |
| Management interface | Supported |
| Console interface (RJ45) | Supported |
| Console interface (Mini USB) | Supported |
| USB 2.0 interface (host) | Supported |
| USB 2.0 interface (OTG) | None |
| Micro SD card (default) | Not supported |
| Antenna interfaces | None |
| Service interfaces (standard configuration) | WAN interfaces: 1 GE electrical interface, 1 GE combo interface, 1 SA interface, 1 E1 interfaceLAN interfaces: 48 10/100M auto-sensing Ethernet electrical interfaces |
| Interface number | LAN interfaces: FE0-FE47 |
| Extended slots | 1 |
| Power module type | Built-in AC power module |
| Rated voltage range | 100 V AC/240 V AC, 50 Hz/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| RPS150 | Supported |
| PoE | Not supported |
| Maximum PoE power for PDs | None |
| PoE+ interfaces | None |
| Weight | 4.5 kg (9.92 lb) |
| Mounting brackets | Standard configuration |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating altitude | 0-4000 m (0-13123 ft.) |
| Fan type | Built-in fans |
| Heat dissipation mode | Forcible air cooling |
| Installation mode | Rack mounting |
