Sold out
AR3670
Model: Huawei AR G3 AR3600 Series Router AR3670
Details: AR3670,2 SIC,3 WSIC, 4 XSIC, 700W AC Power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
AR3670 Overview

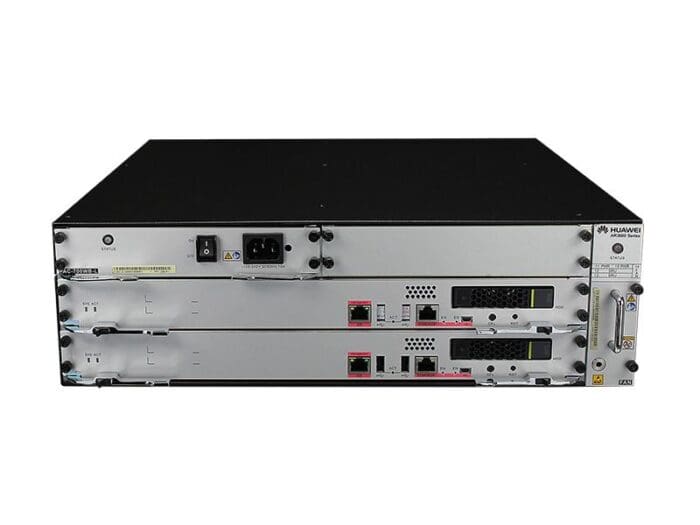

Quick Specs Figure 1 shows the appearance of AR3670.
Table 1 shows the Quick Specs.
| Service Forwarding Performance | 4.5 Gbit/s |
| SIC Slots | 2 |
| WSICSlots(default/maximum**) | 7/8 |
| XSIC slots(default/maximum**) | 0/6 |
| Management Port | One Ethernet port |
| USB 2.0 Ports | 2 |
| Mini-USB Port | 1 |
| Auxiliary or Console Port | 1 |
| Hard Disk | 1 TB |
| Memory (default/maximum) | 8 GB/24 GB |
| Flash | 8 GB |
| Virtual Machines | 8 (Based on VM, the customers can install Windows OS or Linux OS) |
| Maximum Power | 700W per power supply (dual power supplies supported) |
| AC Power Supply | 100V to 240V |
| Power Frequency | 50/60 Hz |
| Dimensions (W x D x H) | 442 mm x 470 mm x 130.5 mm |
| Weight | 11 kg (without power modules and cards) |
| Ambient Temperature | 0°C to 45°C |
| Environment Relative Humidity | 5% to 95% (non-condensing) |
| Basic Functions | ARP, DHCP, NAT, and sub-interface management |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio frequency management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, and more |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMP v1/v2/v3, IGMP snooping v1/v2/v3, PIM SM, PIM DM, and MSDP |
| MPLS | LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and smart VPN |
| QoS | DiffServ, MPLS QoS, priority mapping, CAR, traffic shaping, congestion avoidance (IP or DSCP priority-based WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), HQoS, FR QoS, SAC, and hardware QoS |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication, web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP anti-attack, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, attack source tracing, and state-approved algorithms (SM1, SM2, SM3 SCB2 algorithms) |
| Management and Maintenance | Upgrade management, device management, web NMS, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, USB-based deployment, Barcode Scanning, and command line |
