-5%
AR502H-CN
Model: AR502H-CN Router
Details: AR502H-CN 2*RS485(or 2*RS232),1*DI/DO,3*GE (10/100/1000M RJ45),2*GE COMBO,1*LTE (dual SIM),1*USB3.0, GPS/GLONASS/BDS, 9.6-60VDC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR502H-CN Overview

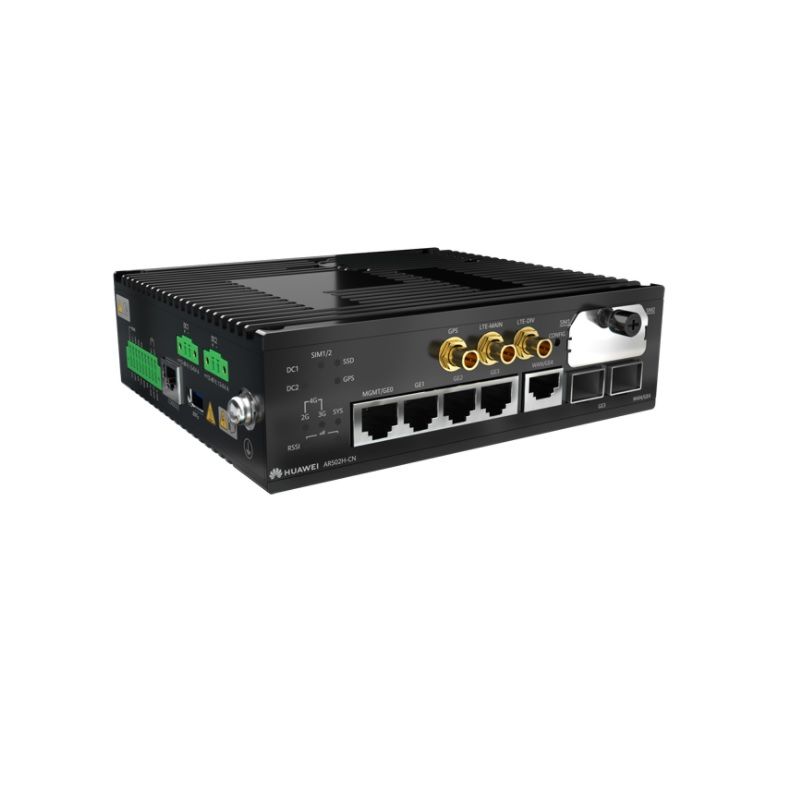

Quick Specs Figure 1 shows the appearance of AR502H-CN.
Table 1 shows the Quick Specs.
| Processor | ARM 4-core A53, 1GHz |
| DDR | 2GB, DDR4 |
| Flash | 2GB, SLC NAND |
| Basic Skills | Support install, uninstall, start, stop containerSupport install, uninstall, start, stop APPSupport APP incremental upgrade |
| Advanced Features | Supports allocating CPU cores to containersSupports adjustment of container storage and memory resourcesSupports the deployment of multiple containers and provides a message bus between containers |
| Security Function | Support container disk encryptionSupport container and APP signature verification |
| IoT Protocol | Support MQTT, CoAP |
| Secondary Development Support | Support standard Debian OS development environment and provide secondary development guidanceSupport mainstream programming languages, such as C/C++ |
| 5G | – |
| 4G/LTE | FDD LTE: Band 1/3/5/8TDD LTE: Band 38/39/40/41 |
| 3G | HSPA+/UMTS: Band 1/5/8/9 |
| Fixed Ethernet Interface | 3 * GE electricity, 10/100/1000Mbit/s adaptive2 * GE combo |
| Fixed Serial Port | 2 * RS485 or RS232 (isolated, 485 and 232 are switched by software) |
| Alarm Port | 1 DI (passive contact input)1 DO (industrial terminal, support normally open and normally closed) |
| Power Supply | Dual DC redundancy: 9.6~60V (industrial terminal) |
| Operating Temperature | –40°C to +70°C |
| Dimensions (W*D*H) | 150*133*44mm |
