Model: AR532 – Huawei AR530 Series Agile Gateways
Details: Huawei AR532 IoT Gateway, 1 x GE/1 x GE Combo Fixed Ethernet Ports, 2 RS485 Ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR532 Overview

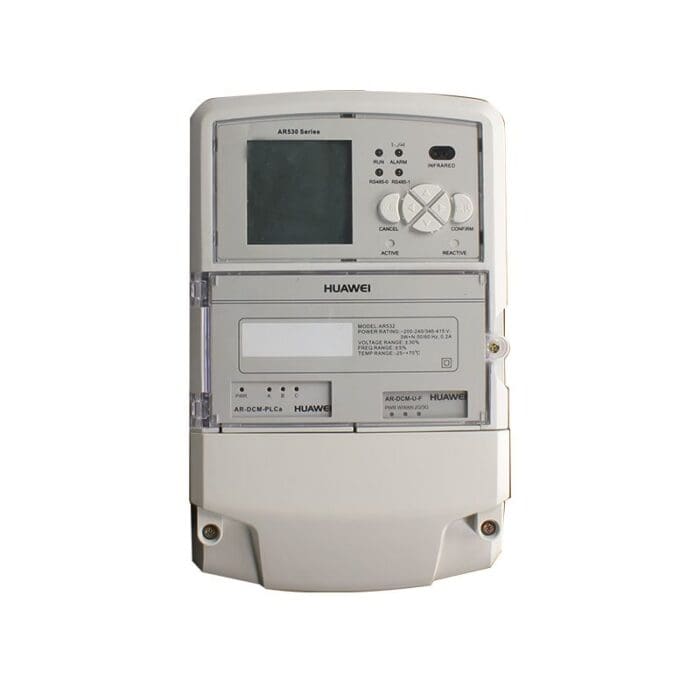

Quick Specs Figure 1 shows the appearance of AR532.
Table 1 shows the Quick Specs.
| Industrial Communication Protocol | IEC62056 |
| Uplink: 3G/GPRS | 1* MiniSIM, SMA Interface, SupportWCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 8 GSM/GPRS/EDGE: 850 MHz/900 MHz/1800Â MHz/1900 MHz |
| Fixed Ethernet Interface | RS232, RS485*2 |
| Downlink: PLC/RF | Huawei PLC-IoT/433M/915M RF (Optional) |
| DI/DO Interface | 2-channel DI/2-channel DO |
| Fixed Interface | RS485*2 |
| Other interface | infrared |
| USB 2.0 | 1 |
| Serial Console Interface | 1 |
| Memory | 256 MB |
| Flash | 512 MB |
| Maximum Power | 12.5 W |
| Power Supply | Rated input voltage range: Single-phase: 100 V to 240 V AC, Three-phase: 173 V to 415 V AC |
| Power Frequency | 50/60 Hz |
| Dimensions (H x W x D) | 290 mm x 180 mm x 95 mm (11.42 in. x 7.09 in. x 3.74 in.) |
| Weight | 2.5kg |
| Installation Method | Wall-mounted, DIN rail mount |
| Operating Temperature | -25℃ to +70℃ |
| Storage Temperature | -40℃to +85℃ |
| Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Protection Level | IP51 (IP54 with outdoor cabinet) |
| AMI Service | Modbus |
| LAN | Meter Reading, 3G/RF/Huawei PLC-IoT Communication management, Monitoring and maintenance, Version management, Fault management, Time-synchronization of meter clock |
