AR550C-4GE
Model: AR550C-4GE Router
Details: AR550C-4GE, 2 SFP WAN 2.5GE, 4 GE LAN, 1 DO, 1 DI, 1 USB2.0, 2 POWER 9.6-60V
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR550C-4GE Overview

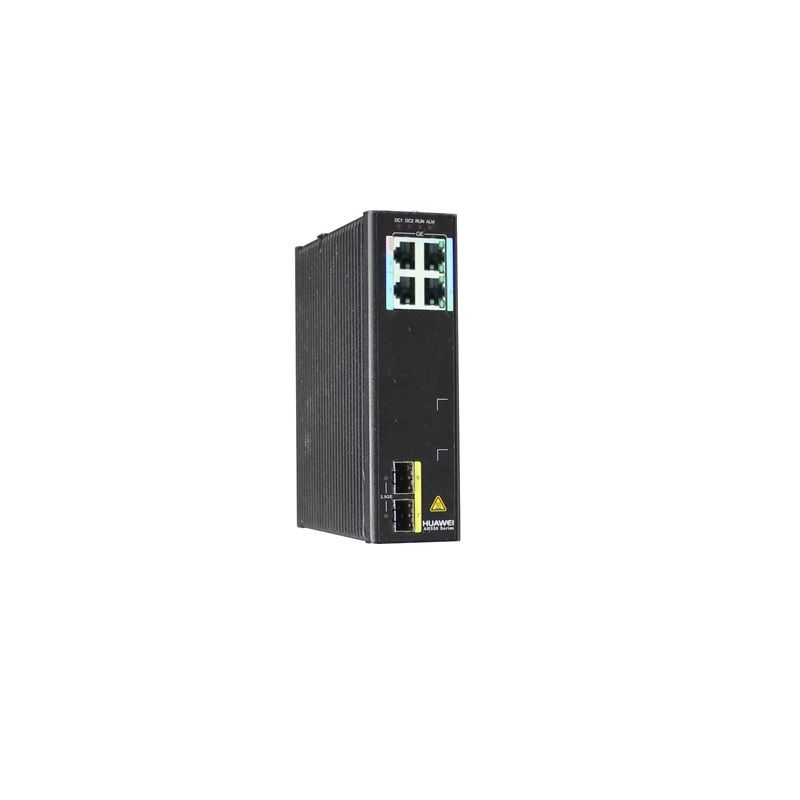

Quick Specs Figure 1 shows the appearance of AR550C-4GE.
Table 1 shows the Quick Specs.
| Fixed Ethernet interfaces | 2 x 2.5G SFP(Compatible with GE), 4 x GE RJ45 |
| Alarm Relay interface | 1 DI 1 DO (terminal block, support Normal Open and Normal Closed) |
| USB2.0 | 1 |
| Serial auxiliary/ console interface | 1 |
| Forwarding performance | 13.5Mpps |
| Switching capacity | 54Gbps |
| DRAM memory | 256 MB |
| Flash memory | 512 MB |
| Power supply | Dual DC power: 9.6 V to 60 V (terminal block) |
| Dimensions (W x D x H) | 44 * 133 * 150 mm |
| Typical power consumption | 13W |
| Installation mode | Installation on a DIN rail |
| Storage temperature | –40°C to +85°C |
| Operating temperature | –40°C to +70°C The device is tested for 2 hours at temperatures in the range of +70°C to +85°C. |
| Operating humidity | 5% to 95% (non-condensing) |
| IP protection Rating | IP40 |
