-5%
AR611W-S
Model: AR611W-S Router
Details: AR611W-S, 1*GE Combo+4*GE, support wifi
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR611W-S Overview

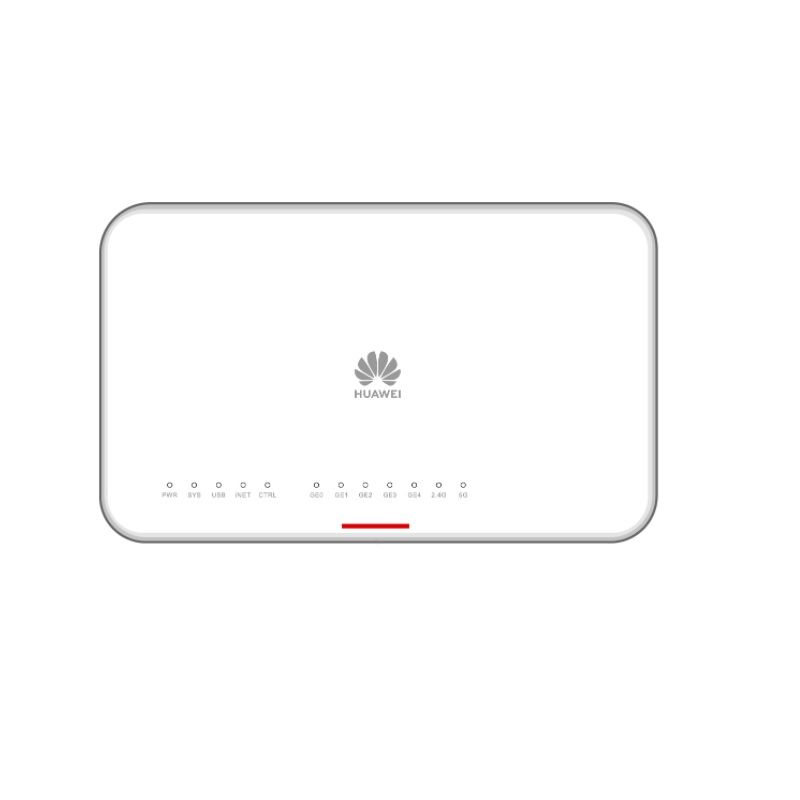

Quick Specs Figure 1 shows the appearance of AR611W-S.
Table 1 shows the Quick Specs.
| Item | Specification |
| Installation type | Work benchAgainst the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions: 38.0 mm x 240.0 mm x 161.5 mm (1.50 in. x 9.45 in. x 6.36 in.)Maximum dimensions: 41.4 mm x 278.6 mm x 161.5 mm (1.63 in. x 10.97 in. x 6.36 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 370 mm x 297 mm (3.54 in. x 14.57 in. x 11.69 in.) |
| CPU | 1.1 GHz, 2 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 12 W |
| Power supply mode | AC external |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 270 V, 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Maximum output power [W] | 24 W |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipation |
| Redundant power supply | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F)NOTE:When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
