AR6140-16G4XG
Model: AR6140-16G4XG – Huawei NetEngine AR6100 Series Routers
Details: AR6140-16G4XG 4*GE 4*10GE SFP+ WAN,12*GE LAN,1*USB 2.0,4*SIC slot,2*WSIC slot,2*POWER slot
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR6140-16G4XG Overview

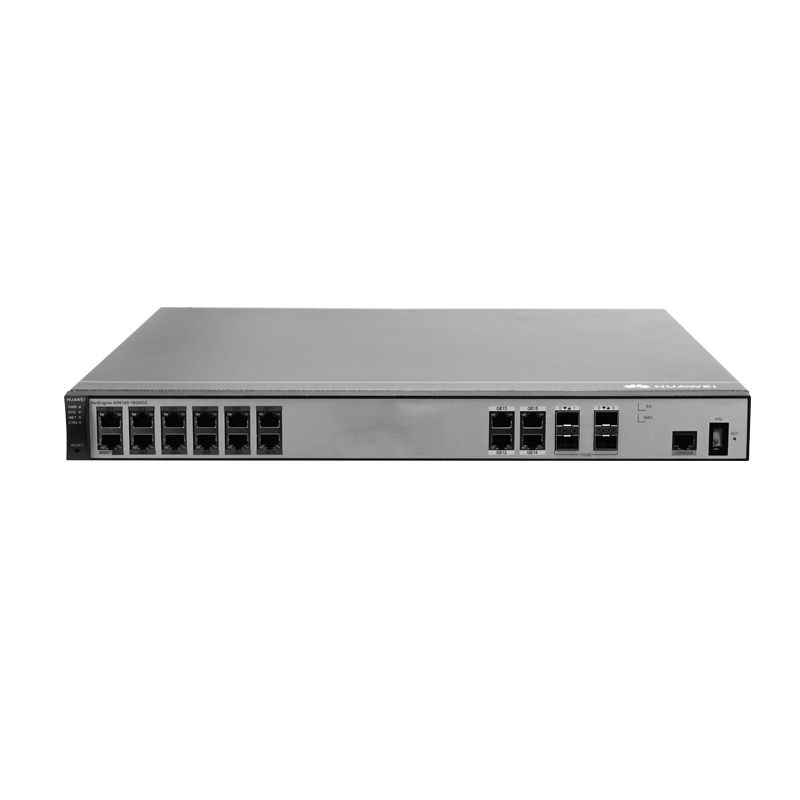

Quick Specs Figure 1 shows the appearance of AR6140-16G4XG.
Table 1 shows the Quick Specs.
| Processor | 16-core, 1.85 GHz |
| Memory | 4 GB |
| Flash | 1 GB |
| Micro SD card (default sd1) | Not supported |
| Hard disk | Not supported |
| Dimensions (H x W x D) | • With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height• With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height |
| Rated input voltage range (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current | 3 A |
| Maximum output power | 150 W |
| RPS power supply | Not supported |
| PoE power supply | Not supported |
| Typical power consumption | 60 W |
| Maximum power consumption | 96.8 W |
| Fans | Built-in, unpluggable fans |
| Airflow (facing the front panel) | Left to right |
| Management interface | 1 (RJ45) |
| CON/AUX interfaces | 1 (RJ45) |
| USB 3.0 interface | 1 |
| Service interfaces (standard configuration) | LAN interfaces: twelve GE electrical interfacesWAN interfaces: four GE electrical interfaces and four 10GE optical interfaces |
| Extended slots | 4 x SIC2 x WSIC |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating relative humidity | 5% to 95%, non-condensing |
| Operating altitude | < 5000 m (16404.2 ft.) |
| Basic function | DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MACÂ management, STP |
| WLAN (AC) | AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN usermanagement, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management) |
| IPv4 unicast routing | Routing policies, static routes, RIP, OSPF, IS-IS, BGP |
| IPv6 unicast routing | Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Basic IPv6 function | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 |
| IPv6 tunneling | Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP |
| Multicast | IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
| VPN | IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),hierarchical QoS, Smart Application Control (SAC) |
| Security | ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering |
| Management andmaintenance | Upgrade management, device management, web-based network management, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA |
| EMC standardscompliance | CISPR32 Class AEN 55032 Class ACISPR24EN 55024ETSI EN 300 386AS/NZS CISPR32 Class AFCC Part 15 Subpart B Class AICES 003 Class AIEC 61000-3-2EN 61000-3-2IEC 61000-3-3EN 61000-3-3GB 9254VCCI-CISPR32 Class A |
| Environmentalstandards compliance | RoHSREACHWEEE |
| Safety standardscompliance | IEC 60950-1EN 60950-1UL 60950-1CSA C22.2 No 60950-1GB 4943.1 |
