Name: AR6140H-S
SKU: AR6140H-S
Availability: InStock

AR6140H-S

Model: AR6140H-S Router
Details: AR6140H-S, 4*GE WAN, 4*SFP+, 12*GE LAN, 1*USB2.0, 4*SIC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

AR6140H-S Overview

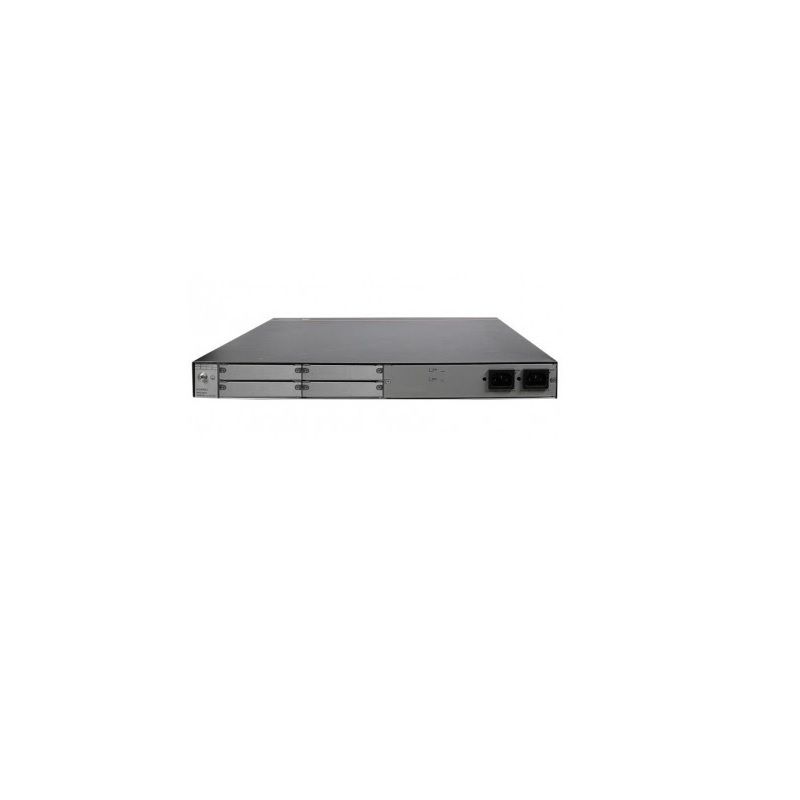

Quick Specs Figure 1 shows the appearance of AR6140H-S.

Table 1 shows the Quick Specs.

Installation type	Rack
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 428.2 mm (1.73 in. x 17.40 in. x 16.86 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 450.2 mm (1.73 in. x 17.40 in. x 17.72 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	225 mm x 550 mm x 530 mm (8.89 in. x 21.65 in. x 20.87 in.)
CPU	1.85 GHz, 16 Cores
Memory	4 GB
NAND Flash	1 GB
Console port	RJ45
RTC	Supported
Maximum power consumption [W]	60 W
Power supply mode	AC external
Number of power modules	2
Rated input voltage [V]	100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	3 A
Maximum output power [W]	150 W
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	4 x SIC
Number of service board slots	4
Redundant power supply	Support double AC power supply (1 : 1 backup)
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	57.6 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)NOTE:When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
