Name: AR6280
SKU: AR6280
Availability: InStock

AR6280

Model: AR6280 – Huawei NetEngine AR6200 Series Routers
Details: AR6280 integrated chassis,1*SRU slot,4*SIC slot,2*WSIC slot,2*XSIC slot,2*POWER slot
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

AR6280 Overview

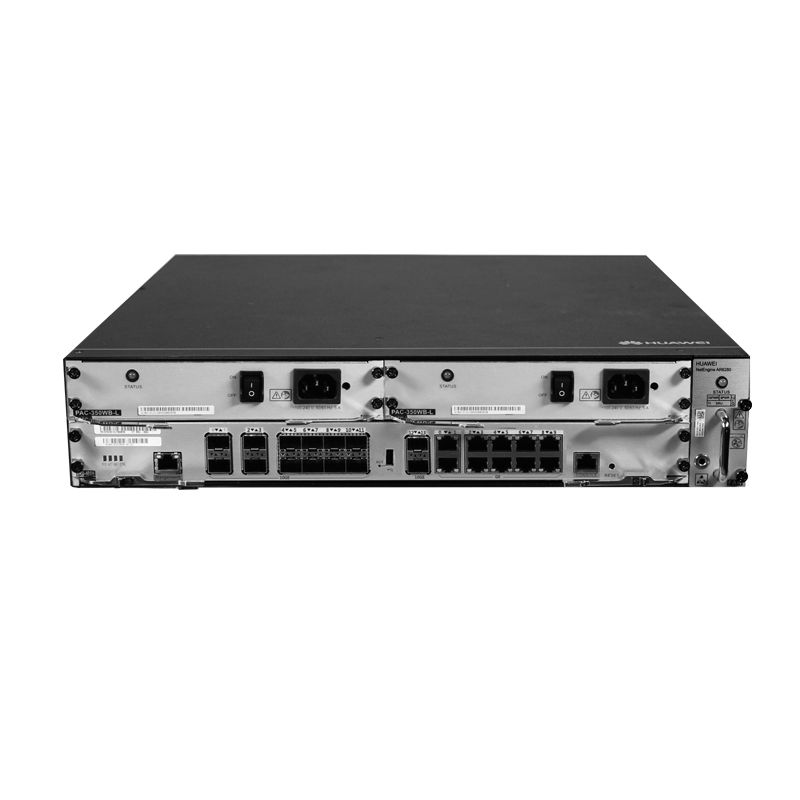

Quick Specs Figure 1 shows the appearance of AR6280.

Table 1 shows the Quick Specs.

Processor	16-Core
ForwardingPerformance (LAN – >WAN + WAN – > LAN,NAT + ACL + QoS,IMIX)	SRU-400H: 10 GbpsSRU-600H: 12 Gbps
IPsec performance(IMIX)	SRU-400H: 6 GbpsSRU-600H: 7.5 Gbps
Fixed WAN ports	SRU-400H: WAN: 1410GE SFP+(compatible with GE SFP) +10GE RJ45 (All WAN ports can be configured as LAN)SRU-600H: WAN: 1410GE SFP+(compatible with GE SFP) +10GE RJ45 (All WAN ports can be configured as LAN)
Fixed LAN ports
SIC slots	4
WSIC slots	2 (default)/4 (maximum)
XSIC slots	2(default)/4 (maximum)
USB port	1*USB2.0
Auxiliary or consoleport	1 x RJ45 console port
Memory	SRU-400H: 8 GBSRU-600H: 16 GB
Flash memory	SRU-400H: 2 GBSRU-600H: 4 GB
Hot swapping	Supported
Routerdimensions,With no mountingbracket installed (H xW x D)	88.1 mm x 442 mm x 470 mm
Router dimensions,With mountingbracket installed (H xW x D)	88.1 mm x 482.6 mm x 470 mm
Packagingdimensions (H x W xD)	160 mm x 570 mm x 725 mm
Rack	IEC
Occupied rack space	2U
Rated input voltagerange (AC)	100 V to 240 V
Rated input frequency(AC)	50 Hz/60 Hz
Maximum inputvoltage range (AC)	90 V to 264 V
Maximum inputcurrent (AC)	5 A
Maximumoutputpower (AC)	350 W
Power supplyredundancy	Hot-swappable dual power supplies
Typical powerconsumption	80 W
Maximum powerconsumption	160 W
Fan module	Independent pluggable fan modules
Airflow	Left to right
Noise level	54.2 dB
Operatingtemperature	0ºC to 45ºC
Operating humidity	5% to 95% (non-condensing)
Operatingaltitude	< 5000 m (16404.2 ft.)
Storage temperature	–40ºC to +70ºC
Storage altitude	< 5000 m (16404.2 ft.)
Basic function	DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP
WLAN (AC)	AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN usermanagement, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management)
IPv4 unicast routing	Routing policies, static routes, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing	Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+
Basic IPv6 function	IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6
IPv6 tunneling	Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP
Multicast	IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD
MPLS	LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN	IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN
QoS	DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),hierarchical QoS, Smart Application Control (SAC)
Security	ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering
Management andmaintenance	Upgrade management, device management, web-based network management, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA
EMC standardscompliance	CISPR32 Class AEN 55032 Class ACISPR24EN 55024ETSI EN 300 386AS/NZS CISPR32 Class AFCC Part 15 Subpart B Class AICES 003 Class AIEC 61000-3-2EN 61000-3-2IEC 61000-3-3EN 61000-3-3GB 9254VCCI-CISPR32 Class A
Environmentalstandards compliance	RoHSREACHWEEE
Safety standardscompliance	IEC 60950-1EN 60950-1UL 60950-1CSA C22.2 No 60950-1GB 4943.1
