Name: AR6300-S
SKU: AR6300-S
Availability: InStock

AR6300-S

Model: AR6300-S Router
Details: AR6300-S, service routing unit 400H board, 4*SIC, 2*WSIC, 4*XSIC, 350W AC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

AR6300-S Overview

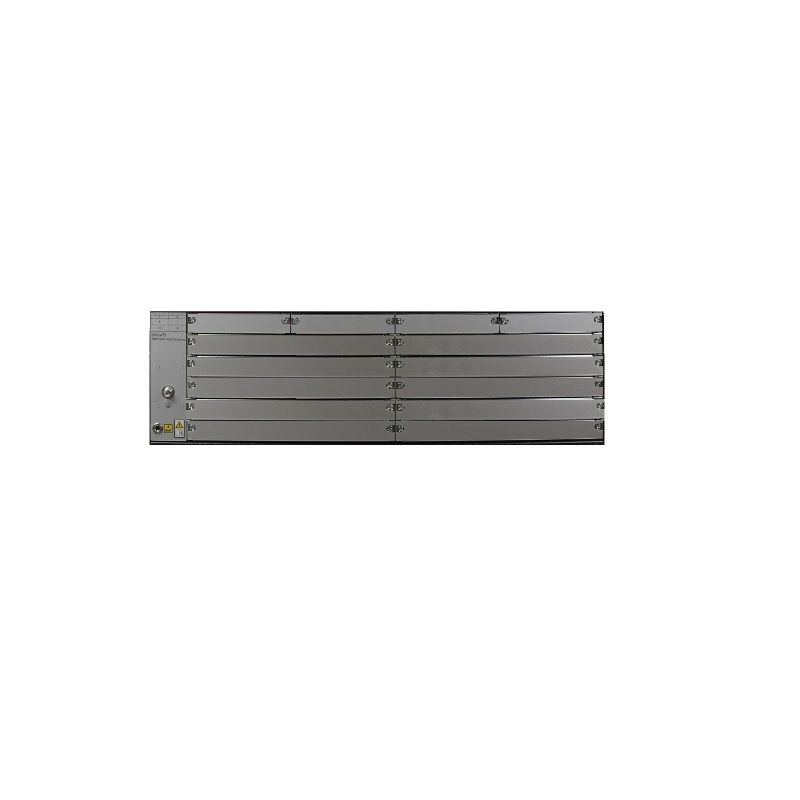

Quick Specs Figure 1 shows the appearance of AR6300-S.

Table 1 shows the Quick Specs.

Installation type	Rack
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 130.5 mm x 442.0 mm x 470.0 mm (5.14 in. x 17.40 in. x 18.50 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 130.5 mm x 442.0 mm x 494.7 mm (5.14 in. x 17.40 in. x 19.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	230 mm x 655 mm x 590 mm (9.06 in. x 25.79 in. x 23.23 in.)
Power supply mode	AC external
Number of power modules	2
Rated input voltage [V]	AC rated input voltage range: 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V]	AC maximum input voltage range: 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A]	5 A
Maximum output power [W]	350 W
Type of fans	Pluggable
Number of fan modules	1
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	4 x SIC2 x WSIC4 x XSIC
Number of service board slots	10
Redundant power supply	Support double AC power supply (1 + 1 backup)Support double DC power supply (1 + 1 backup)
RPS input	Not supported
Noise at normal temperature (acoustic power) [dB(A)]	66.1 dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)NOTE:When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	< 5000 m (16404.2 ft.)
