AR651F-Lite
Model: AR651F-Lite Router
Details: AR651F-Lite AC host (8GE (RJ45), 4GE SFP, 1GB memory, 1*USB3.0)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR651F-Lite Overview

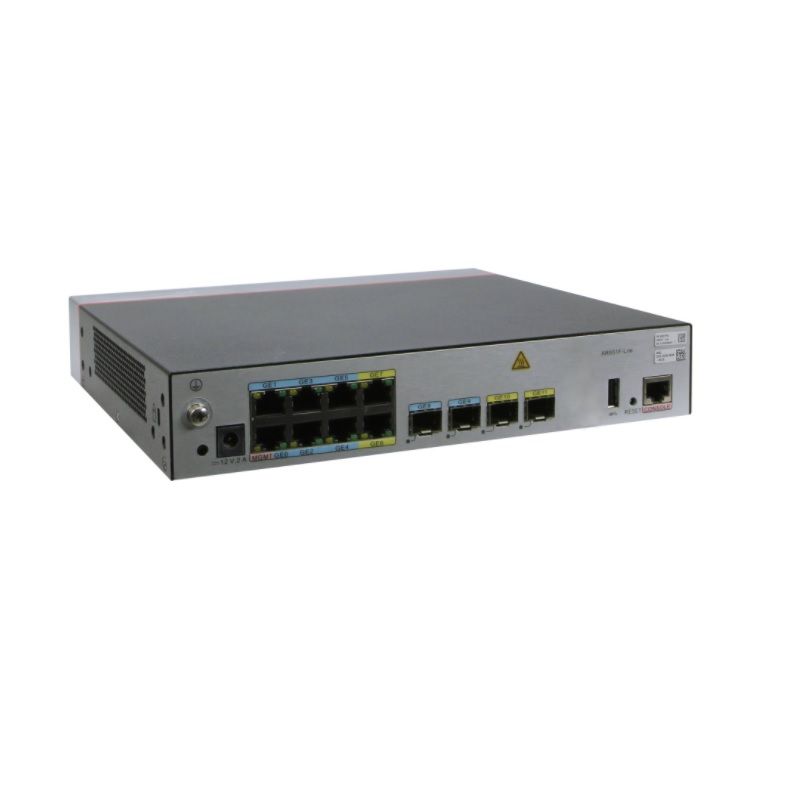

Quick Specs Figure 1 shows the appearance of AR651F-Lite.
Table 1 shows the Quick Specs.
| Item | Specification |
| Installation type | RackWork benchAgainst the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 210.2 mm (1.72 in. x 9.84 in. x 8.28 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 250.0 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.) |
| CPU | 1.2 GHz, 4 Cores |
| Memory | 1 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 23.6 W |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 1 A |
| Maximum output power [W] | 36 W |
| Type of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Natural heat dissipationNOTE:The router uses natural heat dissipation. Compared with the air-cooled model, the router surface temperature is high when the device is working properly. This is a normal phenomenon and meets the safety requirements. The router functions and reliability are not affected. |
| Redundant power supply | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 0 (Natural heat dissipation) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)NOTE:When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
