AR651W
Model: AR651W Router
Details: AR651W,2*GE combo WAN,8*GE LAN,1*USB2.0,802.11b/g/n/ac,2*2MIMO,1*MIC slot
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
AR651W Overview

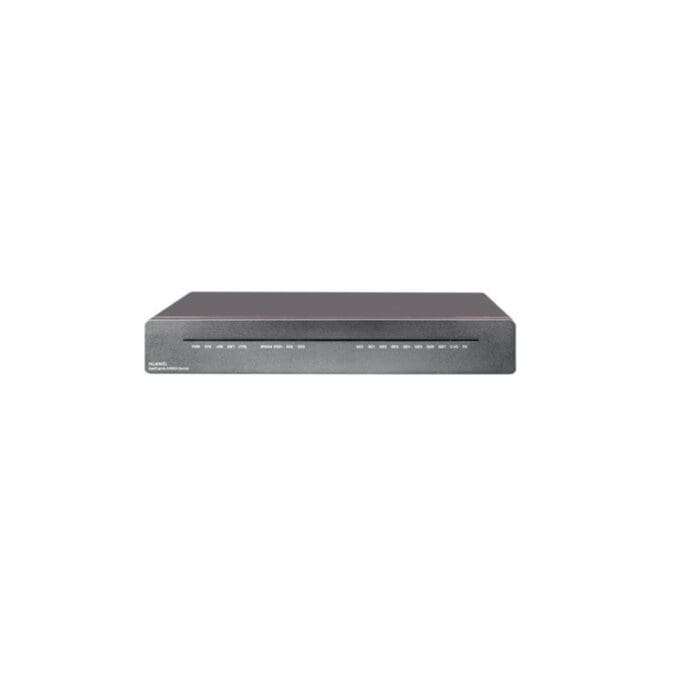

Quick Specs Figure 1 shows the appearance of AR651W.
Table 1 shows the Quick Specs.
| Item | Specification |
| Installation type | RackWork benchAgainst the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 44.0 mm x 300.0 mm x 220.3 mm (1.73 in. x 11.8 in. x 8.67 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.0 mm x 300.0 mm x 224.7 mm (1.73 in. x 11.8 in. x 8.85 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 2 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 42 W |
| Power supply mode | AC external |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 1.5 A |
| Maximum output power [W] | 60 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 1 x MIC |
| Redundant power supply | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 49.7 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)NOTE:When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
