ARM808
Model: ARM808 – Dahua Wired Alarms
Details: Dahua 8-Zone Expansion Module (MBus)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ARM808 Overview

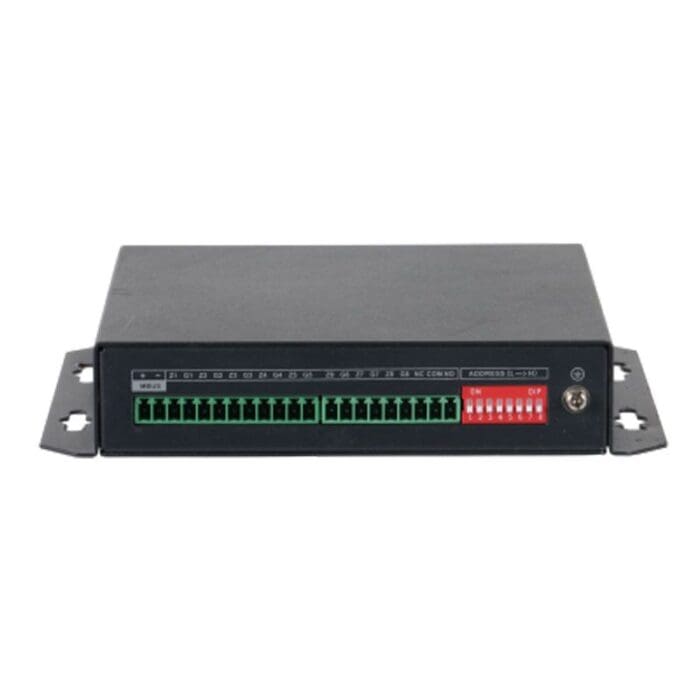

Quick Specs Figure 1 shows the appearance of ARM808.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ARM808 |
| Product Type | 8-Zone Expansion Module |
| Communication Bus | MBus |
| Zones Supported | 8 |
| Power Supply | 12 VDC |
| Power Consumption | Max 250 mA |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Humidity | 10%-90% RH (non-condensing) |
| Dimensions | 178 mm ° 106 mm ° 27 mm |
| Mounting | Wall Mount |
| Input Voltage Range | 10.8 VDC to 13.8 VDC |
| Indicator Lights | Power, Status |
| Certifications | CE, FCC |
| Protection | Overvoltage, Overcurrent |
| Installation Environment | Indoor |
| Wiring | Screw-Terminal |
| Firmware Upgrade | Remote Upgrade via Network |
| Addressing | DIP Switch |
| Compatibility | Compatible with Dahua Control Panels |
