-5%
ASA5508-K9
Model: ASA 5500-X Series Next-Generation Firewalls with firepower services
Details: Cisco ASA 5500-X Next Generation, ASA 5508-X, 8*GE ports, 1GE Mgmt, AC, 3DES/AES, AVC, FirePower, FireSIGHT, unlimited user nodes, 100 IPsec VPN, Active/Active, 80G SSD
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5508-K9 Overview

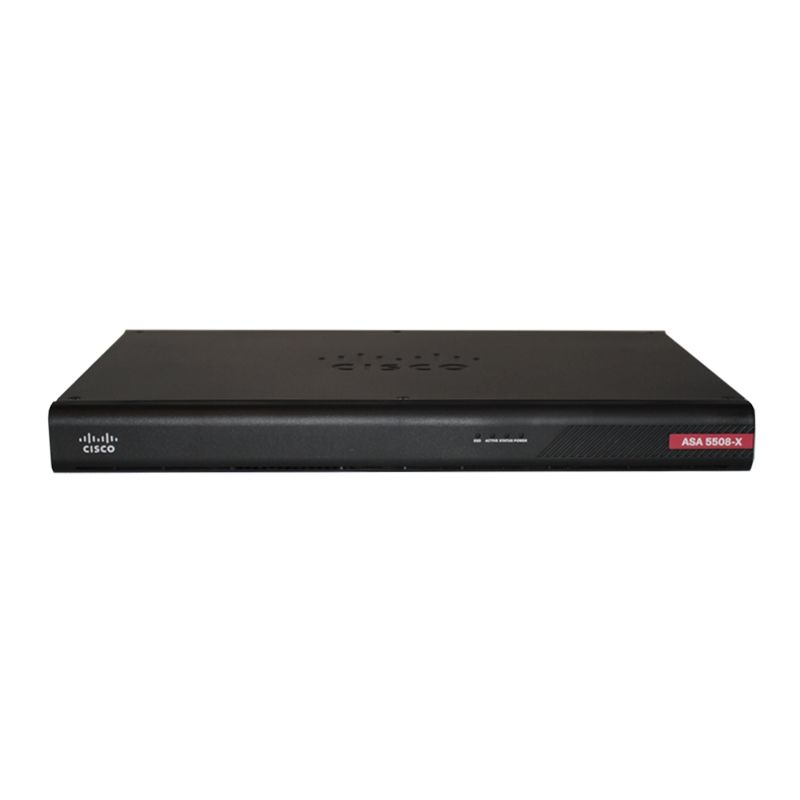

Quick Specs Figure 1 shows the appearance of ASA5508-K9.
Table 1 shows the Quick Specs.
| Type | Cisco ASA 5508-X w/ FirePOWER Services |
| Throughput:Application Control (AVC) | 450 Mbps |
| Throughput:Application Control (AVC) and IPS | 250 Mbps |
| Maximum concurrent sessions | 100,000 |
| Maximum New Connections per second | 10,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM (version 7.3 or higher required) |
| Feature | Cisco ASA 5508-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum) | 1 Gbps |
| Stateful inspection throughput (multiprotocol) | 500 Mbps |
| Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput3 | 175 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 100 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 100 |
| Virtual interfaces (VLANs) | 50 |
| Security contexts5(included; maximum) | |
| High availability | Active/Active and Active/Standby |
| Integrated Wireless Access Point(See Cisco AP 702 datasheet for WiFi technical details) | N/A |
| Expansion slot | N/A |
| User-accessible Flash slot | No |
| USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |
| Integrated I/O | 8 x 1GE |
| Expansion I/O | N/A |
| Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
| Serial ports | 1 RJ-45 and Mini USB console |
| Solid-state drive | 80 GB mSata |
| Memory | 8 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0Â to 15,000 ft (4572 m) |
| Acousticnoise | 41.6 A-weighted decibels (dBA) type |
| AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
| AC normal line voltage | 91 to 240 VAC |
| AC current | 0.25AC amps |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | N/A |
| DC international line voltage | N/A |
| DC current | N/A |
| Steady state | 12V @3.0A |
| Maximumpeak | 12V @ 5A |
| Maximumheat dissipation | 123 Btu/hr |
| Form factor | 1 rack unit (RU), 19-in. rack-mountable |
| Dimensions(H x W x D) | 1.72 x 17.2 x 11.288 in. |
| Weight (with AC power supply) | 8 lb (3 kg) |
Get more information
Do you have any question about the ASA5508-K9?
Contact us now via Live Chat or sales@metafinitivetech.com
