ASA5512-IPS-K9
Model: ASA5512-IPS-K9 Cisco ASA 5500 Series IPS Edition Bundles
Details: Cisco ASA5512-IPS-K9 ASA 5512-X with IPS, SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5512-IPS-K9 Overview

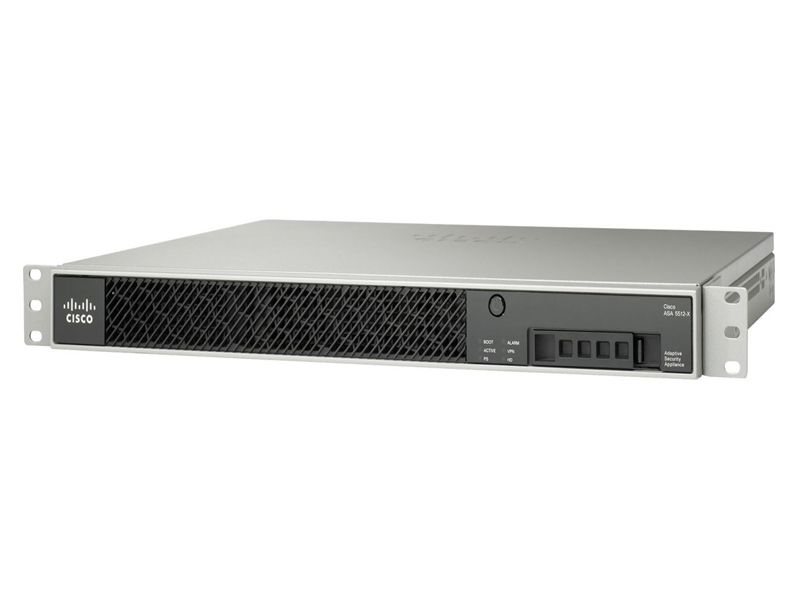

Quick Specs Figure 1 shows the appearance of ASA5512-IPS-K9.
Table 1 shows the Quick Specs.
| Stateful Inspection Throughput (Maximum) | 1 Gbps |
| Stateful Inspection Throughput (Multiprotocol) | 500 Mbps |
| IPS Throughput | 250 Mbps(Extra hardware not required) |
| Next-Generation Throughput(Multiprotocol) | 200 Mbps |
| 3DES/AES VPN Throughput | 200 Mbps |
| Users/Nodes | Unlimited |
| IPsec VPN Peers | 250 |
| Cisco Cloud Web Security Users | 100 |
| Premium AnyConnect VPN Peers(Included/Maximum) | 2/250 |
| Concurrent Connections | 100,000 |
| New Connections/Second | 10,000 |
| Virtual Interfaces (VLANs) | |
| Security Contexts (Included/Maximum) | 0,0;Â 2,5 |
| High Availability | Not supported; Active/Active and Active/Standby |
| Expansion Slot | 1 interface card |
| User-Accessible Flash Slot | No |
| USB 2.0 Ports | 2 |
| Integrated I/O | 6 GE Copper |
| Expansion I/O | 6 GE Copper or 6 GE SFP |
| Serial Ports | 1 RJ-45 console |
| Solid State Drive | 1 slot, 120 GB MLC SED |
| Memory | 4 GB |
| Minimum System Flash | 4 GB |
| System Bus | Multibus architecture |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative Humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0Â to 15,000 ft (4570m) |
| Shock | 70G, 4.22 m/sec |
| Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
| Acoustic Noise | 64.2 dBa max |
| AC Range Line Voltage | 100 to 240 VAC |
| AC Normal Line Voltage | 100 to 240 VAC |
| AC Current | 4.85A |
| AC Frequency | 50/60 Hz |
| Dual-Power Supplies | None |
| DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC International Line Voltage | -55 to -72 VDC(-60 VDC nominal) |
| DC Current | 15A (maximum input) |
| Steady State | 51W |
| Maximum Peak | 56W |
| Maximum Heat Dissipation | 192 BTU/hr |
| Form Factor | 1 RU, 19-in. rack-mountable |
| Dimensions (H x W x D) | 1.67 x 16.7 x 15.6 In (4.24 x 42.9 x 39.5 cm) |
| Weight (with AC Power Supply) | 13.39 lb (6.07 kg) |
| Safety | IEC 60950-1: 2005, 2ndEditionEN 60950-1:2006+A11: 2009UL 60950-1:2007, 2ndEdition;CSA C22.2 No. 60950-1-07, 2nd Edition |
| Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009;ICES-003 ISSUE 4 FEBRUARY.2004;VCCI: V-3/2011.04;C-TICK: AS/NZS CISPR 22,2009KC: KN22 & KN24 |
| Industry Certifications | In process |
