-5%
ASA5545-CU-2AC-K9
Model: ASA5545-CU-2AC-K9 Cisco ASA 5500 Series Firewall Edition Bundle
Details: Cisco ASA 5500 Edition Bundle ASA5545-CU-2AC-K9 ASA 5545-X with SW, 14GE Data, 1GE Mgmt, 2AC, 3DES/AES
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5545-CU-2AC-K9 Overview

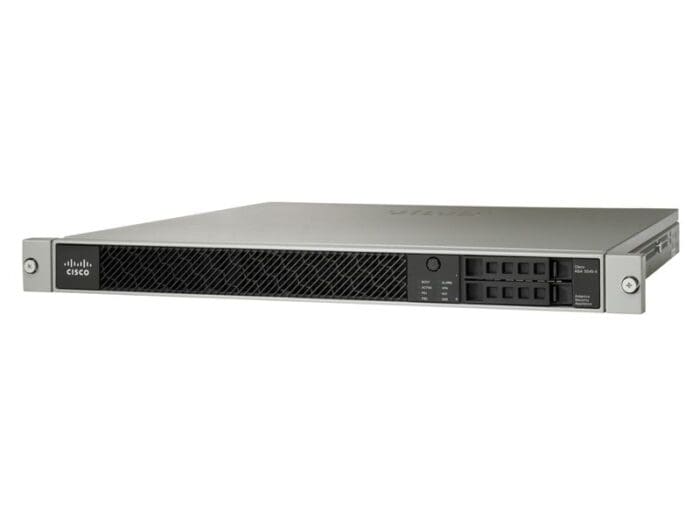

Quick Specs Figure 1 shows the appearance of ASA5545-CU-2AC-K9.
Table 1 shows the Quick Specs.
| Stateful Inspection Throughput (Maximum) | 3 Gbps |
| Stateful Inspection Throughput (Multiprotocol) | 1.5 Gbps |
| IPS Throughput | 900 Mpbs |
| Next-Generation Throughput(Multiprotocol) | 1 Gbps |
| 3DES/AES VPN Throughput | 400 Mbps |
| Users/Nodes | Unlimited |
| IPsec VPN Peers | 2,500 |
| Cisco Cloud Web Security Users | 5,000 |
| Premium AnyConnect VPN Peers(Included/Maximum) | 2/2500 |
| Concurrent Connections | 750,000 |
| New Connections/Second | 30,000 |
| Virtual Interfaces (VLANs) | 300 |
| Security Contexts (Included/Maximum) | |
| High Availability | Active/Active and Active/Standby |
| Expansion Slot | 1 interface card |
| User-Accessible Flash Slot | – |
| USB 2.0 Ports | 2 |
| Integrated I/O | 14 GE Copper |
| Expansion I/O | 6 GE Copper or 6 GE SFP |
| Serial Ports | 1 RJ-45 console |
| Solid State Drive | 2 slot, RAID 1120 GB MLC SED |
| Memory | 12 GB |
| Minimum System Flash | 8 GB |
| System Bus | Multibus architecture |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative Humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0Â to 15,000 ft (4572m) |
| Shock | 70G, 4.22 m/sec |
| Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
| Acoustic Noise | 64.2 dBa max |
| AC Range Line Voltage | 100 to 240 VAC |
| AC Normal Line Voltage | 100 to 240 VAC |
| AC Current | 4.85A |
| AC Frequency | 50/60 Hz |
| Dual-Power Supplies | Yes |
| DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC International Line Voltage | -55 to -72 VDCÂ (-60 VDC nominal) |
| DC Current | 15A (maximum input) |
| Steady State | 86W |
| Maximum Peak | 125W |
| Maximum Heat Dissipation | 427 BTU/hr |
| Form Factor | 1 RU, 19-in. rack-mountable |
| Dimensions (H x W x D) | 1.67 x 16.7 x 19.1 in. (4.24 x 42.9 x 48.4 cm) |
| Weight (with AC Power Supply) | 16.82 lb (7.63 kg) with single power supply18.86 lb (8.61 kg) with dual power supply |
| Safety | IEC 60950-1: 2005, 2ndEdition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2ndEdition;CSA C22.2 No. 60950-1-07, 2ndEdition |
| Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009;EN61000-3-3 2008;Â FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009;ICES-003 ISSUE 4 FEBRUARY.2004;Â VCCI: V-3/2011.04;Â C-TICK: AS/NZS CISPR 22,2009KC: KN22 & KN24 |
| Industry Certifications | In process |
Get more information
Do you have any question about the ASA5545-CU-2AC-K9?
Contact us now via Live Chat or sales@metafinitivetech.com
