ASA5545-K8
Model: ASA5545-K8 Cisco ASA 5500 Series Firewall Edition Bundle
Details: Cisco ASA 5500 Edition Bundle ASA5545-K8 ASA 5545-X with SW, 8GE Data, 1GE Mgmt, AC, DES
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5545-K8 Overview

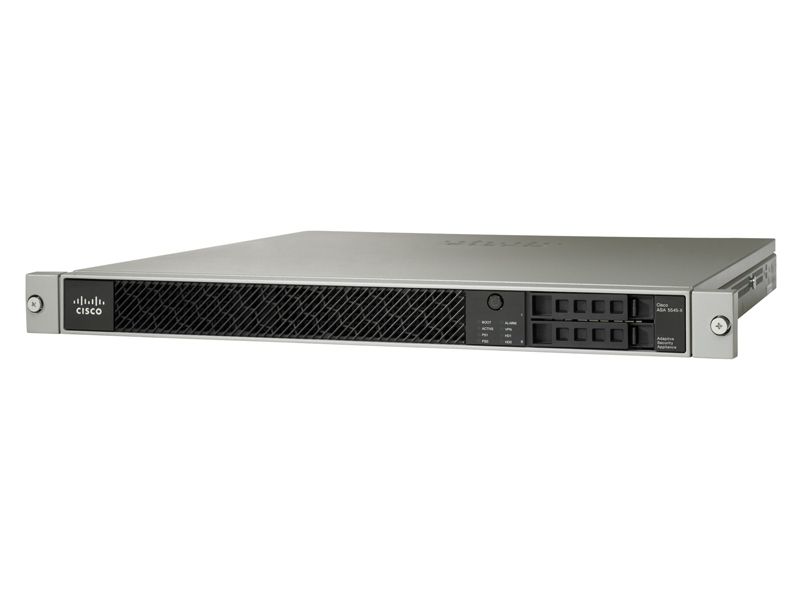

Quick Specs Figure 1 shows the appearance of ASA5545-K8.
Table 1 shows the Quick Specs.
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 16.9 in |
| Depth | 19.1 in |
| Height | 1.7 in |
| Weight | 16.75 lbs |
| RAM | 12 GB |
| Form Factor | Rack-mountable |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Firewall throughput: 3 Gbps ¦ VPN throughput (3DES/AES): 400 Mbps ¦ Connection rate: 30000 connections per second ¦Firewall + intrusion prevention throughput: 900 Mbps |
| Capacity | IPSec VPN peers: 2500 ¦ SSL VPN peers: 2 ¦ Concurrent sessions: 750000 ¦ Virtual interfaces (VLANs): 300 ¦ Security contexts: 2 |
| Status Indicators | Power, HDD activity, active, alarm |
| Features | Firewall protection, VPN support, VLAN support, High Availability |
| Encryption Algorithm | DES |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 8 x 1000Base-T – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x management – RJ-45 ¦ 2 x USB 2.0 – Type A |
| Rack Mounting Kit | Included |
| Compliant Standards | VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1,EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 400 Watt |
| Software Included | Drivers & Utilities |
| Service & Support | Limited warranty – 90 days |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
