-5%
ASA5555-CU-2AC-K9
Model: ASA5555-CU-2AC-K9 Cisco ASA 5500 Series Firewall Edition Bundle
Details: Cisco ASA 5500 Edition Bundle ASA5555-CU-2AC-K9 ASA 5555-X with SW, 14GE Data, 1GE Mgmt, 2AC, 3DES/AES
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5555-CU-2AC-K9 Overview

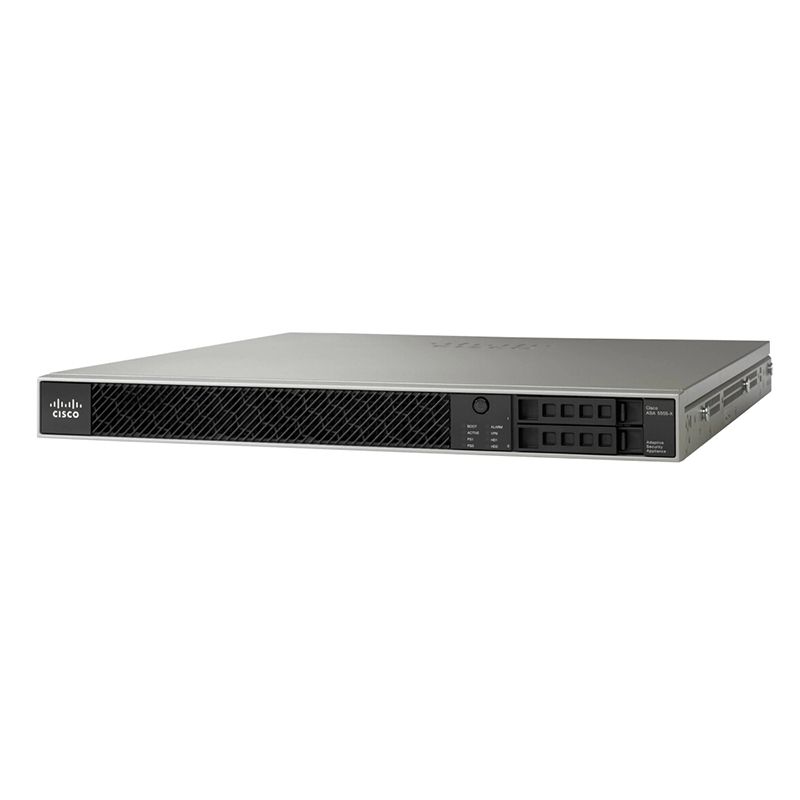

Quick Specs Figure 1 shows the appearance of ASA5555-CU-2AC-K9.
Table 1 shows the Quick Specs.
| Stateful Inspection Throughput (Maximum) | 4 Gbps |
| Stateful Inspection Throughput (Multiprotocol) | 2 Gbps |
| IPS Throughput | 1.3 Gbps |
| Next-Generation Throughput(Multiprotocol) | 1.4 Gbps |
| 3DES/AES VPN Throughput | 700 Mbps |
| Users/Nodes | Unlimited |
| IPsec VPN Peers | 5,000 |
| Cisco Cloud Web Security Users | 6,000 |
| Premium AnyConnect VPN Peers(Included/Maximum) | 2/5000 |
| Concurrent Connections | 1,000,000 |
| New Connections/Second | 50,000 |
| Virtual Interfaces (VLANs) | 500 |
| Security Contexts (Included/Maximum) | |
| High Availability | Active/Active and Active/Standby |
| Expansion Slot | 1 interface card |
| User-Accessible Flash Slot | 0 |
| USB 2.0 Ports | 2 |
| Integrated I/O | 14 GE Copper |
| Expansion I/O | 6 GE Copper or 6 GE SFP |
| Serial Ports | 1 RJ-45 console |
| Solid State Drive | 2 slot, RAID 1120 GB MLC SED |
| Memory | 16 GB |
| Minimum System Flash | 8 GB |
| System Bus | Multibus architecture |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative Humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0Â to 15,000 ft (4572m) |
| Shock | 70G, 4.22 m/sec |
| Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
| Acoustic Noise | 64.2 dBa max |
| AC Range Line Voltage | 100 to 240 VAC |
| AC Normal Line Voltage | 100 to 240 VAC |
| AC Current | 4.85A |
| AC Frequency | 50/60 Hz |
| Dual-Power Supplies | Yes |
| DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC International Line Voltage | -55 to -72 VDCÂ (-60 VDC nominal) |
| DC Current | 15A (maximum input) |
| Steady State | 90W |
| Maximum Peak | 134W |
| Maximum Heat Dissipation | 458 BTU/hr |
| Form Factor | 1 RU, 19-in. rack-mountable |
| Dimensions (H x W x D) | 1.67 x 16.7 x 19.1 in. (4.24 x 42.9 x 48.4 cm) |
| Weight (with AC Power Supply) | 16.82 lb (7.63 kg) with single power supply18.86 lb (8.61 kg) with dual power supply |
| Safety | IEC 60950-1: 2005, 2ndEdition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2ndEdition; CSA C22.2 No. 60950-1-07, 2ndEdition |
| Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009;Â ICES-003 ISSUE 4 FEBRUARY.2004;Â VCCI: V-3/2011.04;Â C-TICK: AS/NZS CISPR 22,2009Â KC: KN22 & KN24 |
| Industry Certifications | In process |
