-5%
ASA5555-FTD-K9
Model: ASA5555-FTD-K9 – Cisco ASA 5500 Firewalls
Details: ASA 5555-X with Firepower Threat Defense. 8GE. AC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5555-FTD-K9 Overview

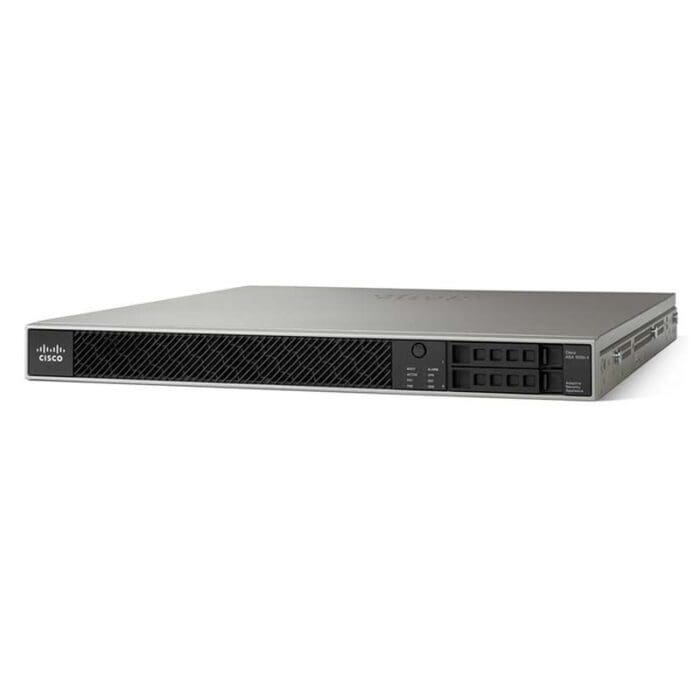

Quick Specs Figure 1 shows the appearance of ASA5555-FTD-K9.
Table 1 shows the Quick Specs.
| Product Number | ASA5555-FTD-K9 |
| Product Description | ASA 5555-X with Firepower Threat Defense. 8GE. AC |
| Throughput:Application Control (AVC) | 1,750 Mbps |
| Throughput:Application Control (AVC) and IPS | 1,250 Mbps |
| Maximum concurrent sessions | 1,000,000 |
| Maximum New Connections per second | 50,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM |
| Feature | Cisco ASA 5555-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum) | 4 Gbps |
| Stateful inspection throughput (multiprotocol) | 2 Gbps |
| Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput | 700 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 5000 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections | 5000 |
| Virtual interfaces (VLANs) | 500 |
| Security contexts(included; maximum) | |
| High availability | Active/Active and Active/Standby |
| Integrated Wireless Access Point(See Cisco AP 702 datasheet for WiFi technical details) | N/A |
| Expansion slot | 1 interface card |
| User-accessible Flash slot | 0 |
| USB 2.0 ports | 2 |
| Integrated I/O | 8 GE copper |
| Expansion I/O | 6 GE copper or6 GE SFP |
| Dedicated management port | Yes (1 GE) |
| Serial ports | 1 RJ-45 console |
| Solid-state drive | 2 slots, RAID 1120 GB MLC SED |
| Memory | 16Â GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | -13 to 158ºF (-25 to 70ºC) |
| Relative humidity | 10 to 90 percent |
| Altitude | Designed and tested for 0Â to 15,000 ft (4572 m) |
| Acousticnoise | 67.9 dBA max |
| AC range line voltage | 100 to 240 VAC |
| AC normal line voltage | 100 to 240 VAC |
| AC current | 5A, 100 to 120V2.5A, 200 to 240V |
| AC frequency | 50/60 Hz |
| Dual-power supplies | Yes |
| DC domestic line voltage | -40.5 to 56 VDC(-48 VDC nominal) |
| DC international line voltage | -55 to -72 VDC(-60 VDC nominal) |
| DC current | 15A (maximum input) |
| Steady state | 90W |
| Maximumpeak | 134W |
| Maximumheat dissipation | 458 Btu/hr |
| Form factor | 1RU, 19-in. rack-mountable |
| Dimensions(H x W x D) | 1.67 x 16.7 x 19.1 in. |
| Weight (with AC power supply) | 16.82 lb (7.63 kg) with single power supply |
