-5%
ASA5585-S20P20XK9
Model: ASA5585-S20P20XK9 Cisco ASA 5585 Series IPS Firewall
Details: Cisco ASA 5585 Firewall ASA5585-S20P20XK9 ASA 5585-X Chas w/ SSP20,IPS SSP20,16GE,4 SFP+,2 AC,3DES/AES
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASA5585-S20P20XK9 Overview

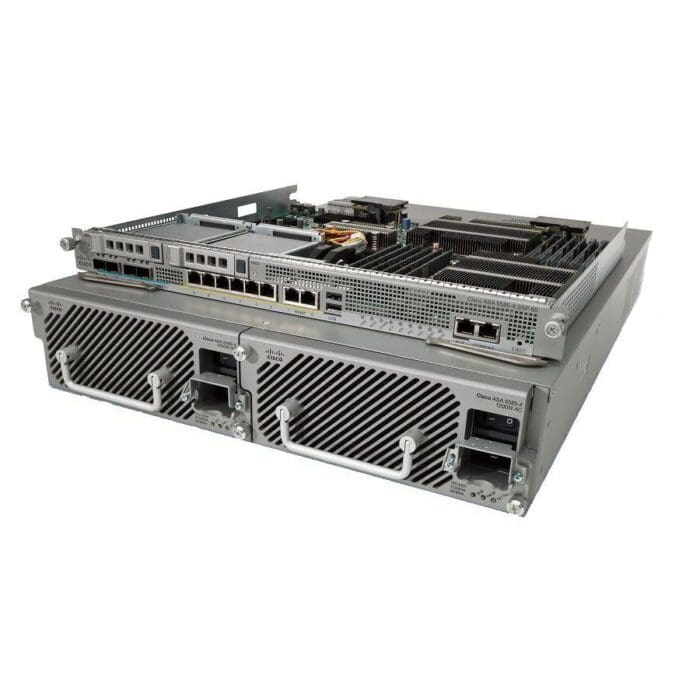

Quick Specs Figure 1 shows the appearance of ASA5585-S20P20XK9.
Table 1 shows the Quick Specs.
| Device Type | Security appliance |
| Height (Rack Units) | 2U |
| Installed Modules Qty (Max) | 2 (2) |
| Width | 19 in |
| Depth | 26.5 in |
| Height | 3.5 in |
| Weight | 62.17 lbs |
| RAM | 24 GB |
| Flash Memory | 4 GB |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput: 10 Gbps ¦ VPN throughput: 2 Gbps ¦ Connection rate: 125000 connections per second ¦ Firewall + intrusion prevention throughput: 3 Gbps |
| Capacity | Concurrent sessions: 2000000 ¦ IPSec VPN peers: 10000 ¦ Virtual interfaces (VLANs): 1024 ¦ SSL VPN peers: 2 ¦ Nodes: unlimited ¦ New sessions per second: 125000 |
| Features | Firewall protection, VPN support, load balancing, VLAN support, Intrusion Prevention System (IPS) |
| Encryption Algorithm | Triple DES, AES |
| Expansion Slots | 2 (total) / 0 (free) x expansion slot ¦ 4 (total) / 4 (free) x |
| Interfaces | 4 x 1000Base-T (management) – RJ-45 ¦ 4 x USB 2.0 – Type A ¦ 2 x management – RJ-45 ¦ 2 x management ¦ 16 x 1000Base-T – RJ-45 |
| Rack Mounting Kit | Included |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943 |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software Included | Cisco VPN Client |
| Service & Support | Limited warranty – replacement – 90 days – response time: 10 days |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
Get more information
Do you have any question about the ASA5585-S20P20XK9?
Contact us now via Live Chat or sales@metafinitivetech.com
