-5%
ASB285G00
Model: Huawei ASB285G00 27011015 Directional Antenna
Details: Directional Antenna,5150-5850MHz,28dBi,5deg,Cross Polarization,5W,Yes,N female*2
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASB285G00 Overview

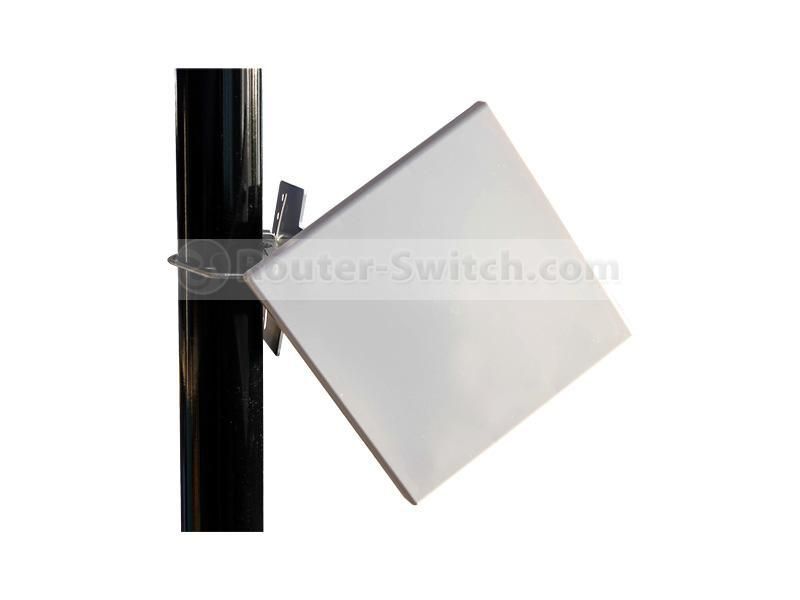

Quick Specs Figure 1 shows the appearance of ASB285G00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | ASB285G00 |
| Type | Directional Antenna |
| Frequency Range | 5150-5850 MHz |
| Gain | 28 dBi |
| Beamwidth | 5 degrees |
| Polarization | Cross Polarization |
| Maximum Input Power | 5 W |
| Radome Material | Yes |
| Connector | N female*2 |
| VSWR | < 1.5:1 |
| Front-to-Back Ratio | > 30 dB |
| Impedance | 50 Ohms |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 0% to 95% |
| Mounting | Mast Mount |
| Dimensions | 600x600x50 mm |
| Wind Load | 200 km/h |
| Compliance | RoHS, CE |
