ASC1204B-S
Model: ASC1204B-S – Dahua Access Controllers
Details: Dahua Four Door Access Controller
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASC1204B-S Overview

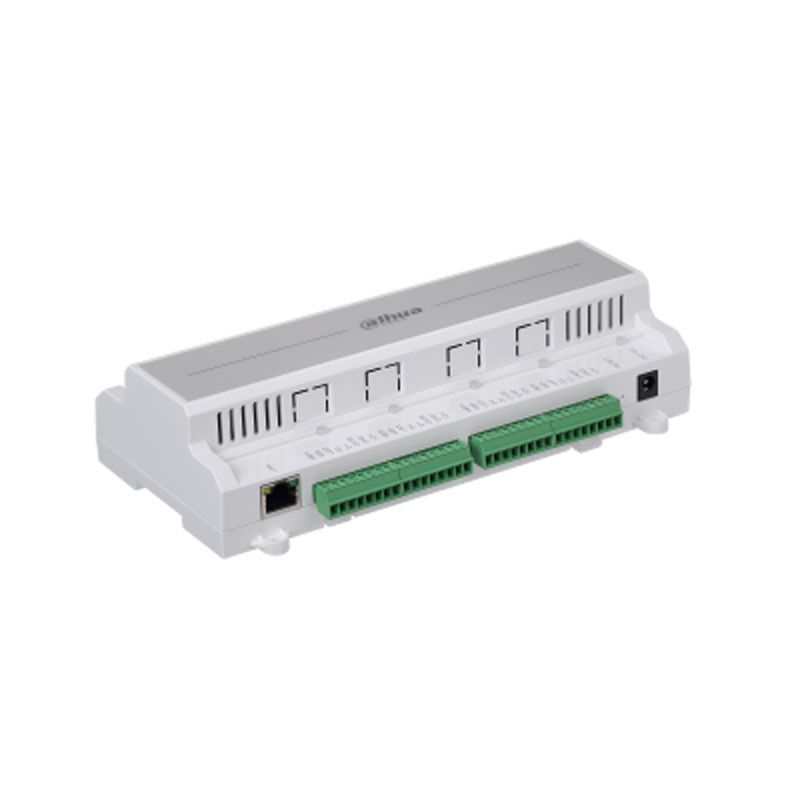

Quick Specs Figure 1 shows the appearance of ASC1204B-S.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASC1204B-S |
| Product Type | Four Door Access Controller |
| Number of Doors | 4 |
| User Capacity | 100,000 |
| Card Capacity | 150,000 |
| Event Buffer | 200,000 |
| Communication Interface | RS-485, TCP/IP |
| Input | 16 (8 Exit Button, 8 Door Status) |
| Output | 12 Relay Outputs |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% – 90% RH (non-condensing) |
| Dimensions | 315mm x 242mm x 68mm |
| Mounting | Wall Mount |
| LED Indicators | Power, Status, Communication |
| Network | 10/100 Mbps Ethernet |
| Firmware | Upgradeable |
| Backup Battery | Optional |
| Alarm | Yes |
