ASC1204C-D
Model: ASC1204C-D – Dahua Access Controllers
Details: Dahua Four Door Two Way Access Controller
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASC1204C-D Overview

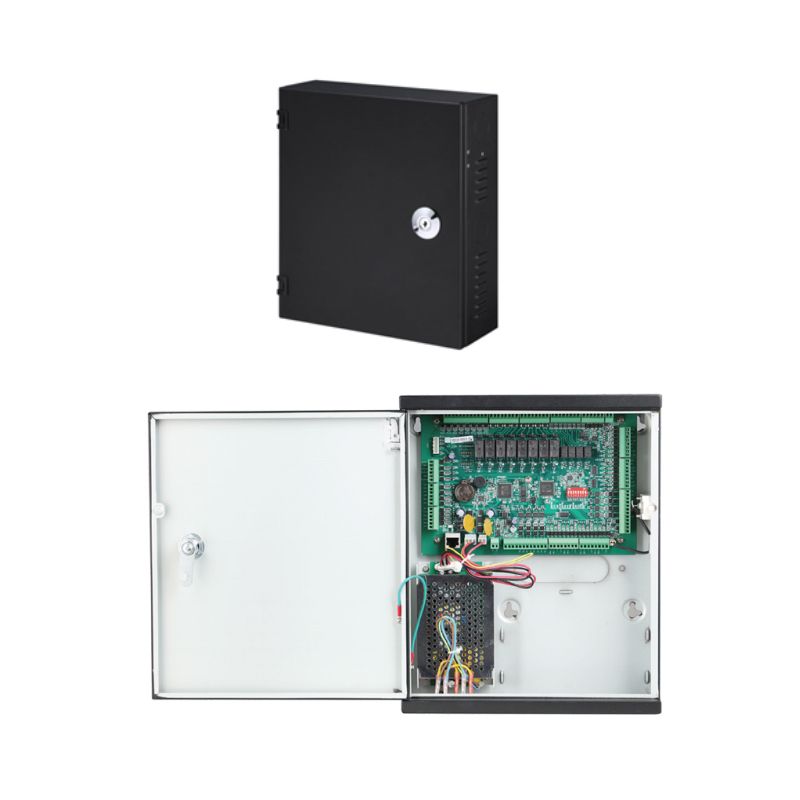

Quick Specs Figure 1 shows the appearance of ASC1204C-D.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASC1204C-D |
| Access Control Doors | 4 |
| Card Capacity | 100,000 |
| Event Capacity | 150,000 |
| Communication Mode | RS-485, TCP/IP |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% to 90% (non-condensing) |
| Dimension (W x H x D) | 350mm x 82.5mm x 320mm |
| Door Status Detection | Yes |
| Alarm Input | 8 |
| Alarm Output | 4 relay outputs |
| Keypad Control | Yes |
| Wiegand Interface | 4 |
| Relay Output | 4 |
| Event Notification | Real-time |
| Software Compatibility | Dahua Management Software |
| Network Interface | 10/100Mbps Ethernet |
| Installation | Wall-Mount |
