ASC1208C-S
Model: ASC1208C-S – Dahua Access Controllers
Details: Dahua Eight Door One-Way Access Controller
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASC1208C-S Overview

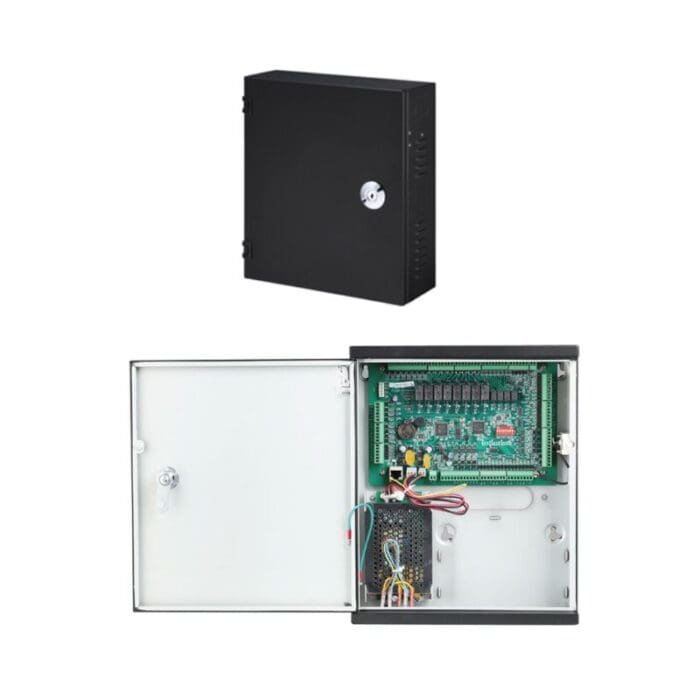

Quick Specs Figure 1 shows the appearance of ASC1208C-S.
Table 1 shows the Quick Specs.
| Main Processor | 32 Bit |
| Memory | 16M |
| Input | Inputs x 20 ( Door sensor x 8, Exit button x 8, Alarm x 4) |
| Output | Relay x 12(door lock x 8, External alarm x 4 ) |
| Reader | Reader x 8 |
| Card holders | 100,000 |
| Events | 150,000 |
| Control Mode | Eight door one-way |
| Access control | Anti-pass back, Multi-interlock, Multi-card unlock |
| User Management | General, VIP, Guest, Patrol, Black list, Duress |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Period | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
| To PC | RJ45(10/100M) |
| To Reader | Wiegand 26/34, RS485 |
| RTC | Yes |
| Power Supply | AC85-AC264, 50/60Hz |
| Operating Temperature | -30°C to +60°C |
| Working Humidity | ≤95% |
| Dimension(W×D×H) | 266mm×87mm×290mm |
| Weight | 2kg |
| Working Environment | Indoor |
| CE | Yes |
| FCC | Yes |
