ASC2104B-T
Model: ASC2104B-T – Dahua Access Controllers
Details: Dahua Four Door Slave Access Control Module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASC2104B-T Overview

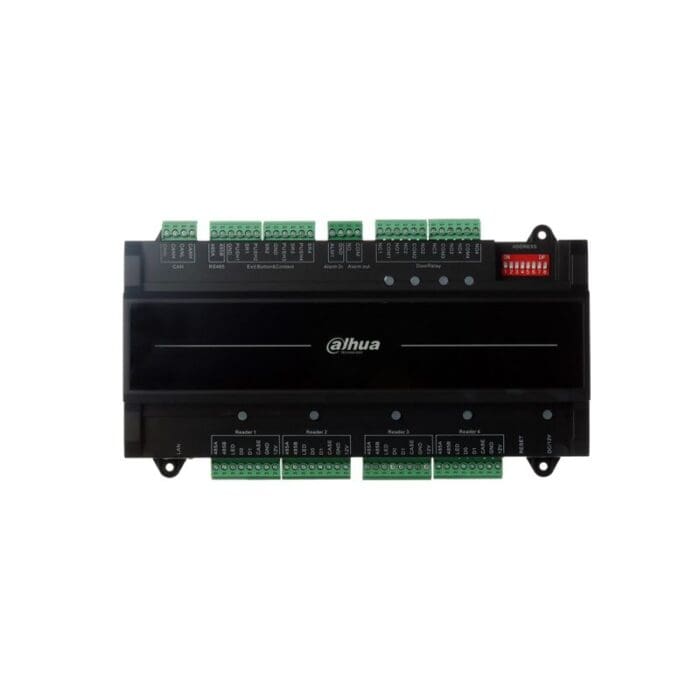

Quick Specs Figure 1 shows the appearance of ASC2104B-T.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASC2104B-T |
| Product Type | Four Door Slave Access Control Module |
| Door Control | 4 Doors |
| User Capacity | 100,000 Users |
| Event Buffer | 150,000 Events |
| Communication | RS485, TCP/IP |
| Input Ports | 10 (Door status, Exit button, Alarm, Tamper) |
| Output Ports | 8 (Relay output) |
| Card Reading Range | 3-8 cm |
| Power Supply | 9-15 VDC/3A |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Dimensions | 345 mm ° 219 mm ° 64 mm |
| Mounting | Wall Mount |
| Certificates | CE, FCC |
| LED Indicators | Power, Status, Communication, Error |
| Tamper Protection | Yes |
| Firmware Upgrade | Remote |
| Warranty | 3 Years |
| Supported Card Types | 125kHz EM, 13.56MHz IC |
